EVH Limited Edition 5150 Deluxe Ash Electric Guitar

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

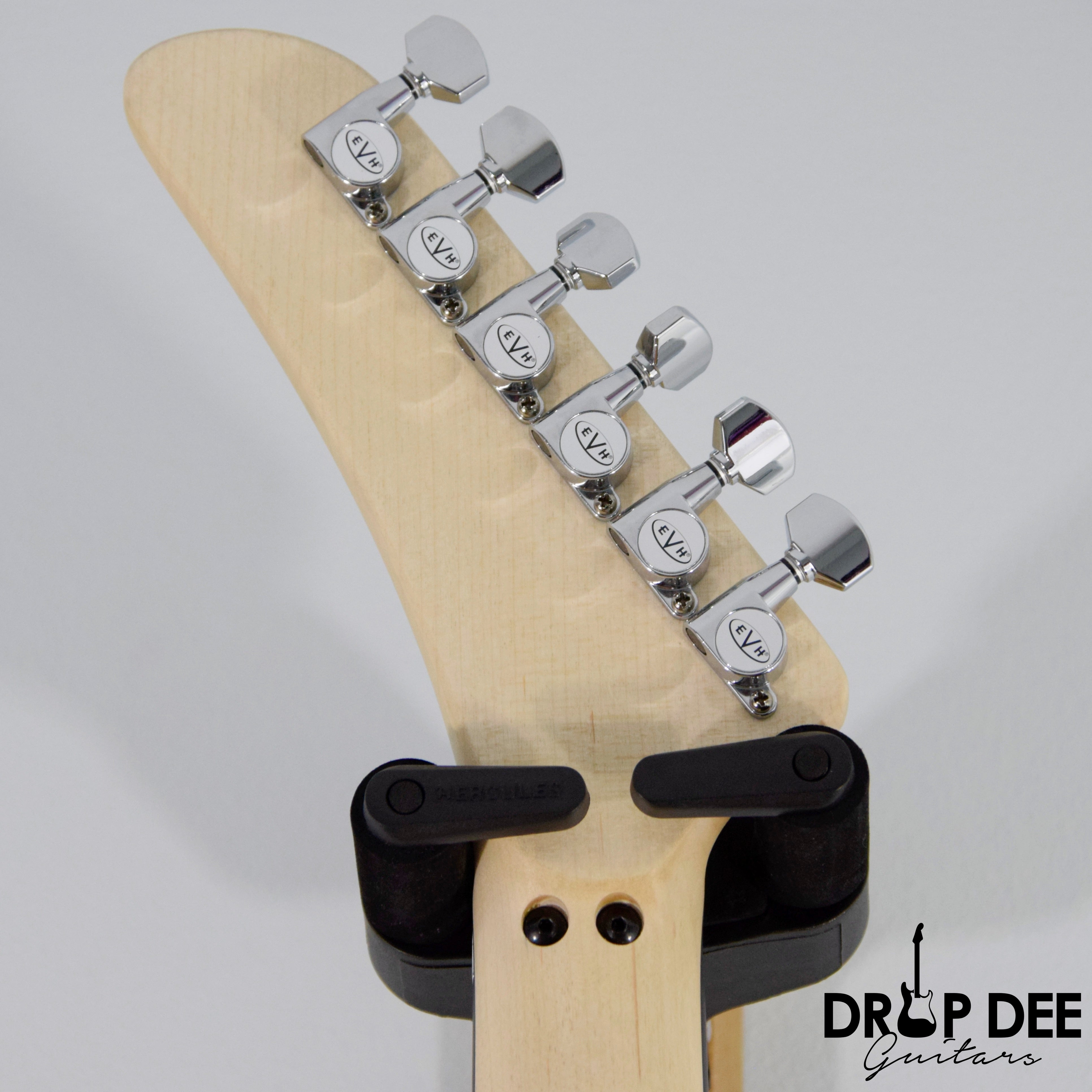

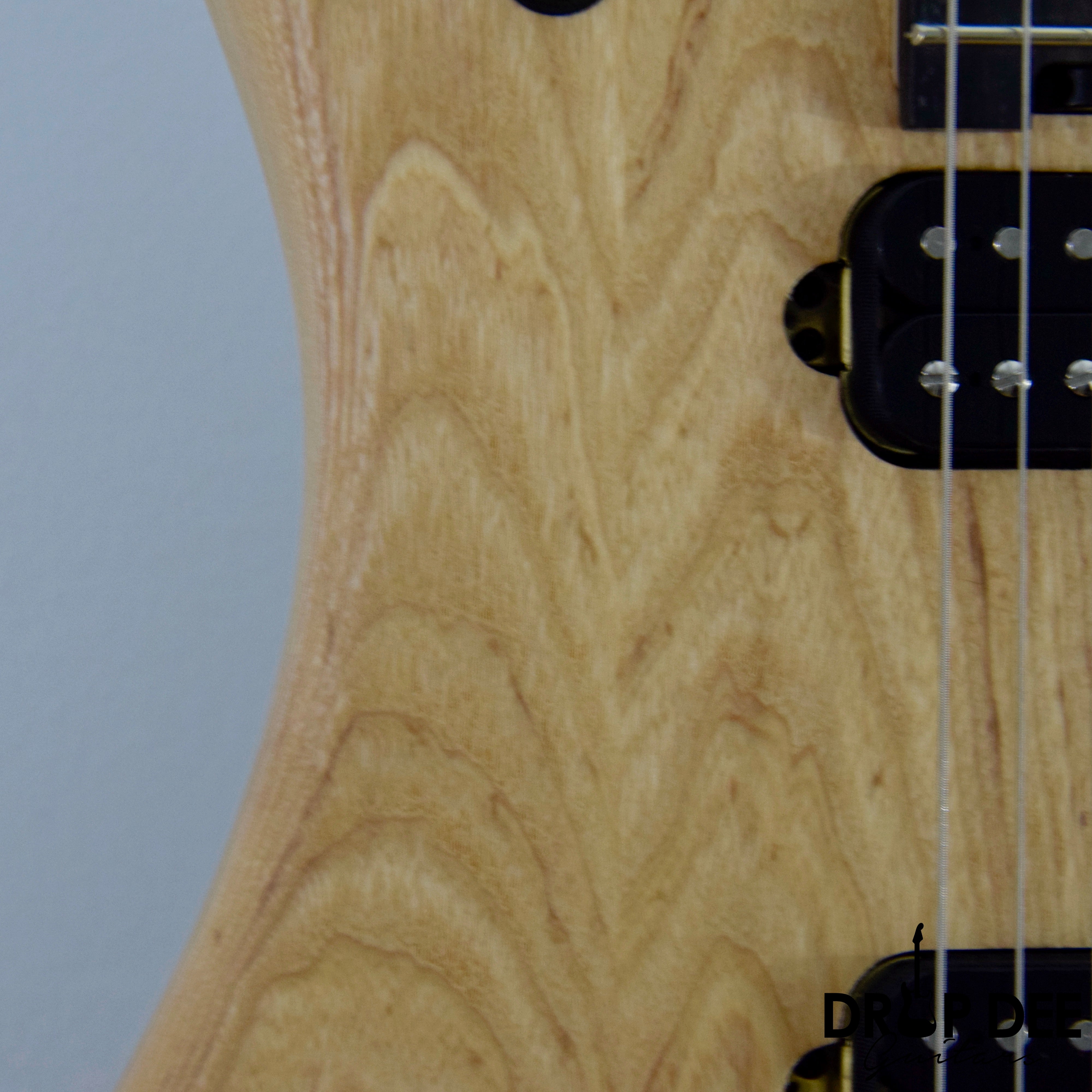

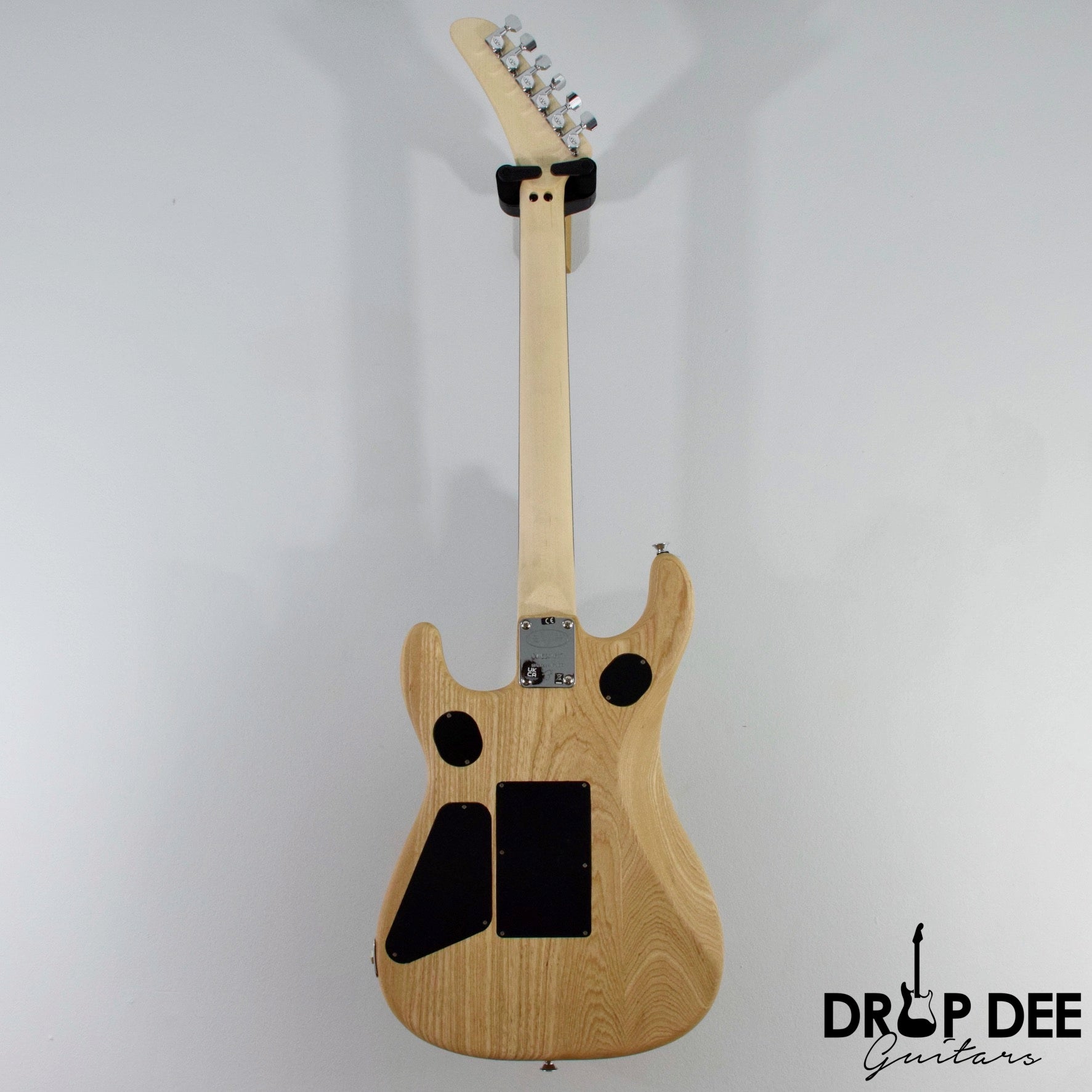

Like its predecessor, the Limited Edition 5150 Deluxe Ash features a modified Strat®-style body with a deeper upper body curve. The ash body is paired with a graphite-reinforced bolt-on quartersawn maple neck that has a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

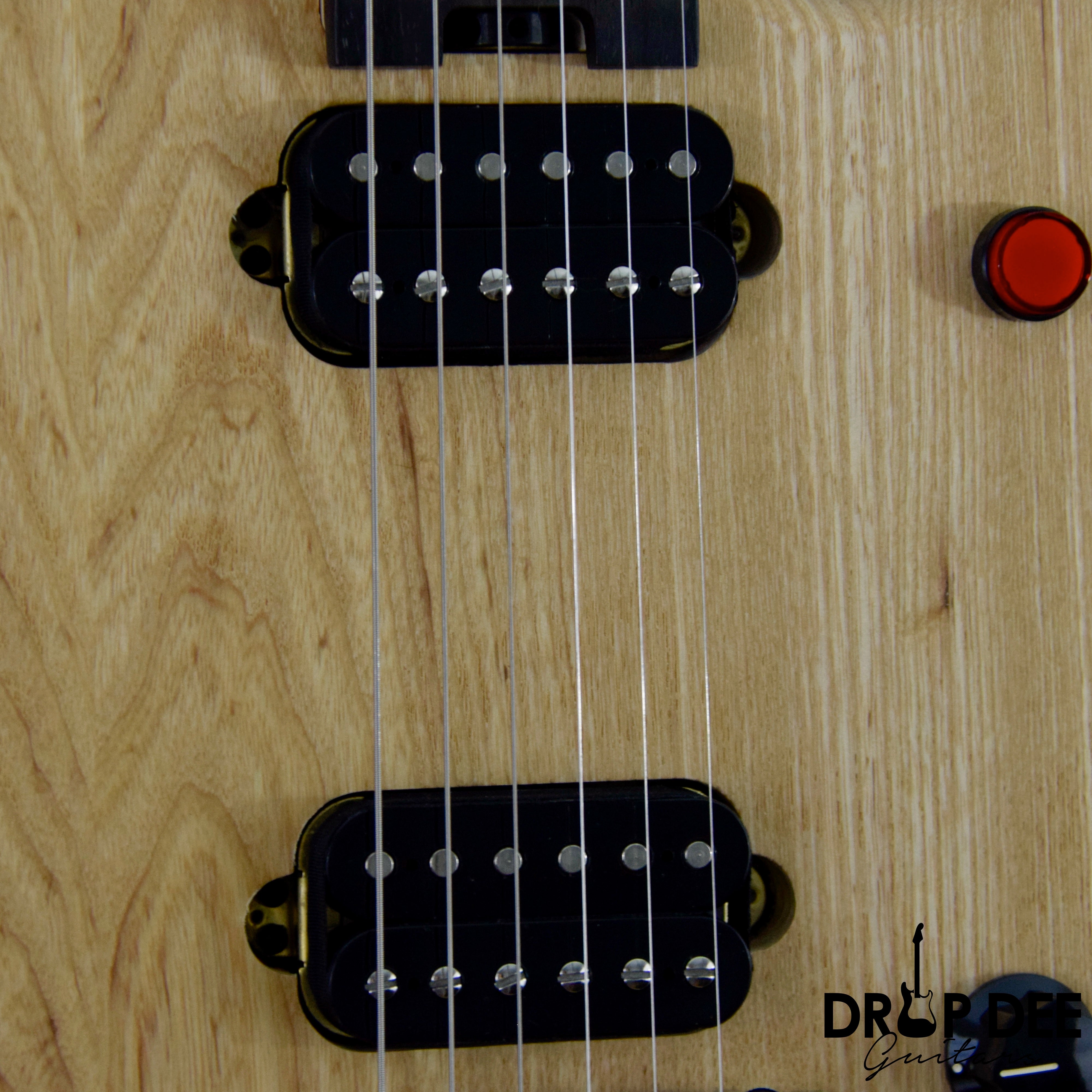

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with a dual humbucking configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A modern spin on a fan favorite, the Limited Edition 5150 Deluxe Ash is elegance personified with a Natural stain finish and all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

Condition: This is a brand new Limited Edition 5150 Series Deluxe Ash. It comes equipped with our Pro-Tech setup and EVH's warranty. Drop Dee Guitars is an authorized dealer of EVH Guitars.

Pro-Tech Setup: Our Pro-Tech setup makes your guitar ready to rock straight out of the box. Here’s how..

• Make any adjustments so the neck is straight to avoid any fret buzzing and for comfort
• Check the nut and nut slots for any adjustments/filing to prevent any tuning issues, as well as for comfort at the lower frets
• Make any adjustments to the bridge/tremolo system so it’s in the proper position for tuning stability
• Set the action to a height that feels comfortable for each guitar
• Set the intonation so you’re in tune everywhere on the neck

All of these steps will make your brand new guitar feel as comfortable as ever and ready to play straight out of the box!

Specs

Body

• Body Finish: Satin
• Body Shape: 5150™
• Body Material: Ash

Electronics

• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Pickup Color: Black
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Auxiliary Switching: Kill Switch
• Pickup Configuration: HH

Neck

• Neck Material: Quartersawn Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
• Neck Finish: Hand-Rubbed Satin
• Neck Shape: EVH® Modified "C" Backshape
• Scale Length: 25.5" (64.77 cm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® R3 Locking
• Nut Width: 1.685" (42.8 mm)
• Position Inlays: White Dot
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose® Retainer Bar
• Headstock: EVH® Hockey Stick
• Neck Plate: 4-Bolt Standard

Hardware

• Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Hardware Finish: Chrome
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tremolo Block: Brass
• Tuning Machines: EVH®-Branded Gotoh®
• Control Knobs: Black Plastic

Miscellaneous

• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Oversized
