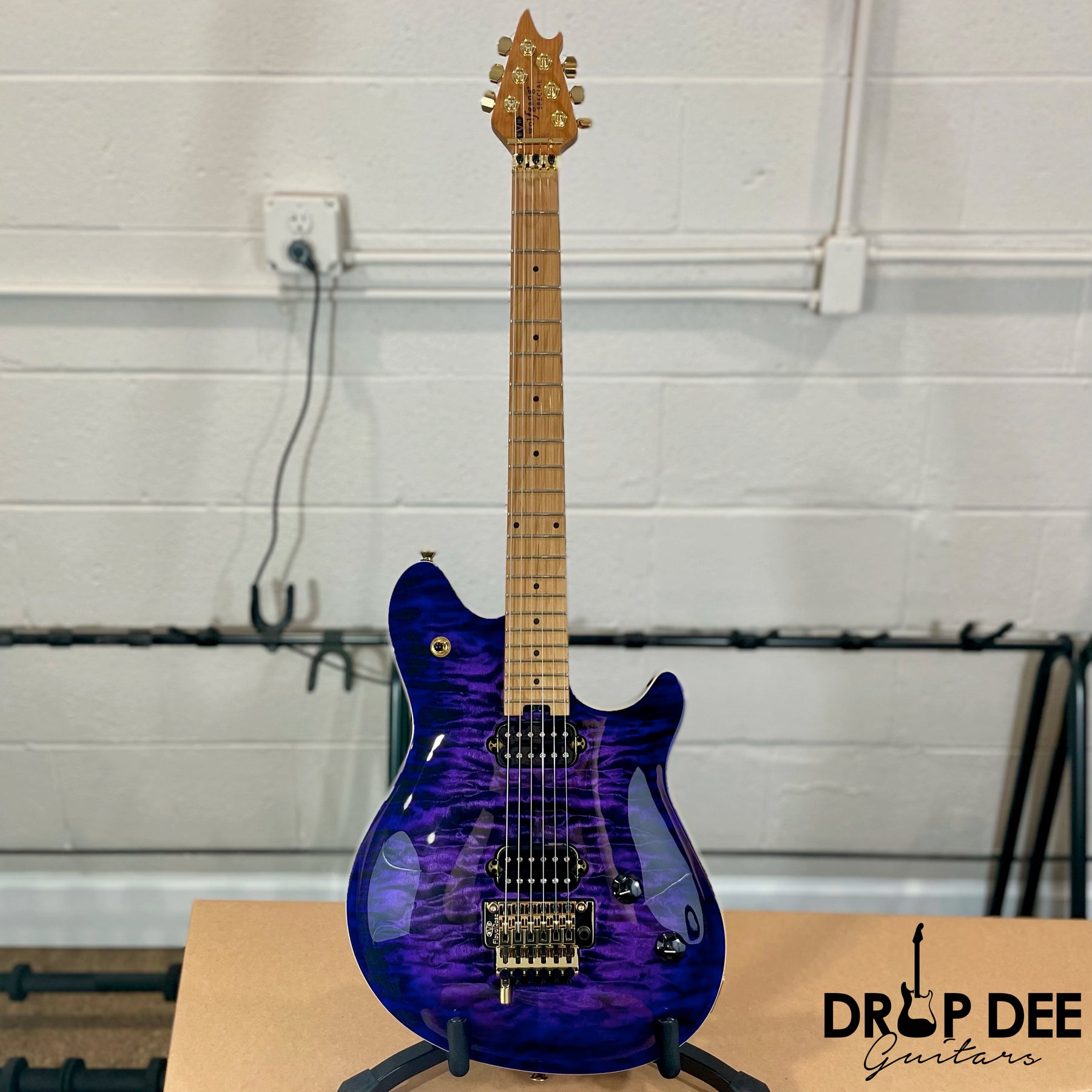

EVH Wolfgang Special QM Electric Guitar

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

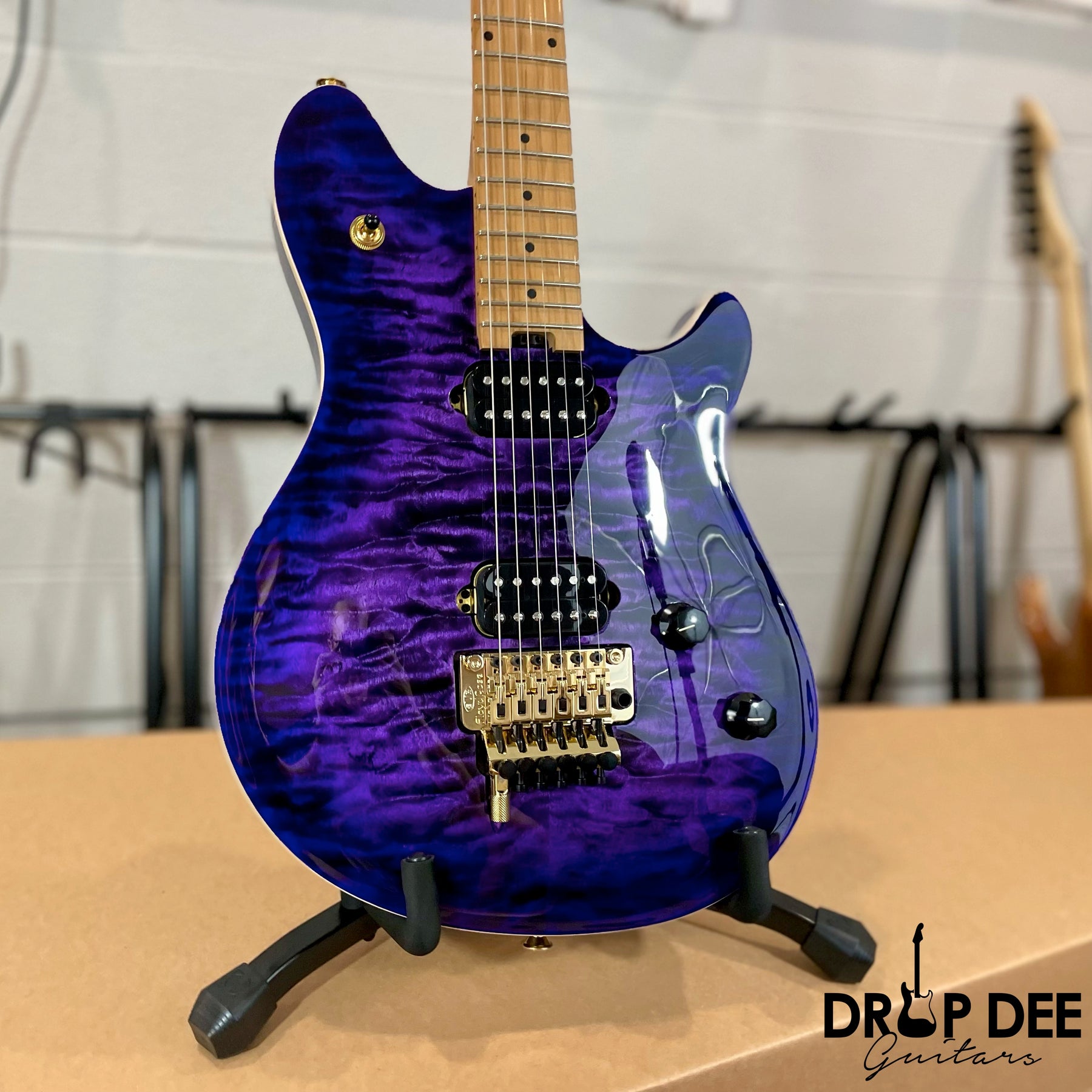

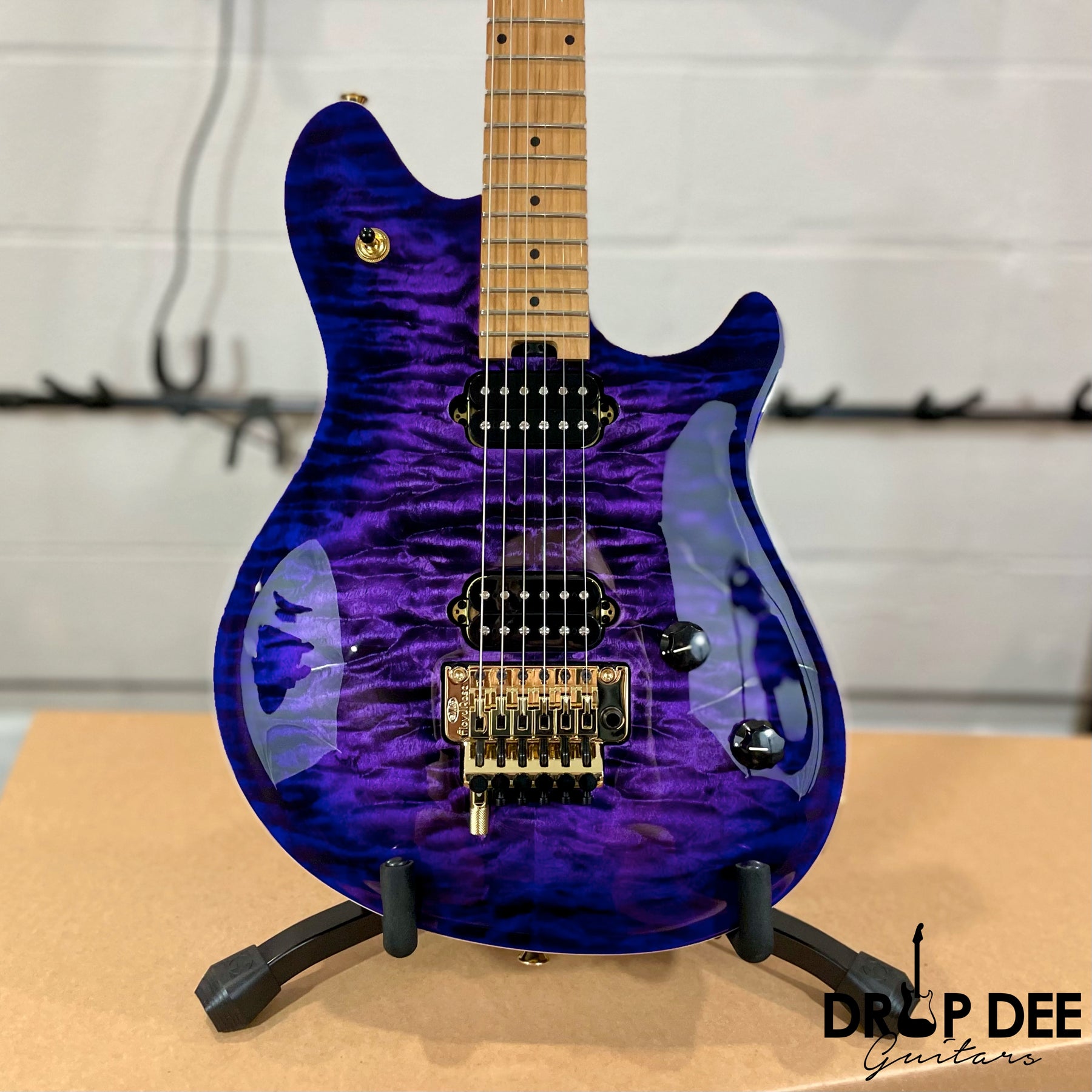

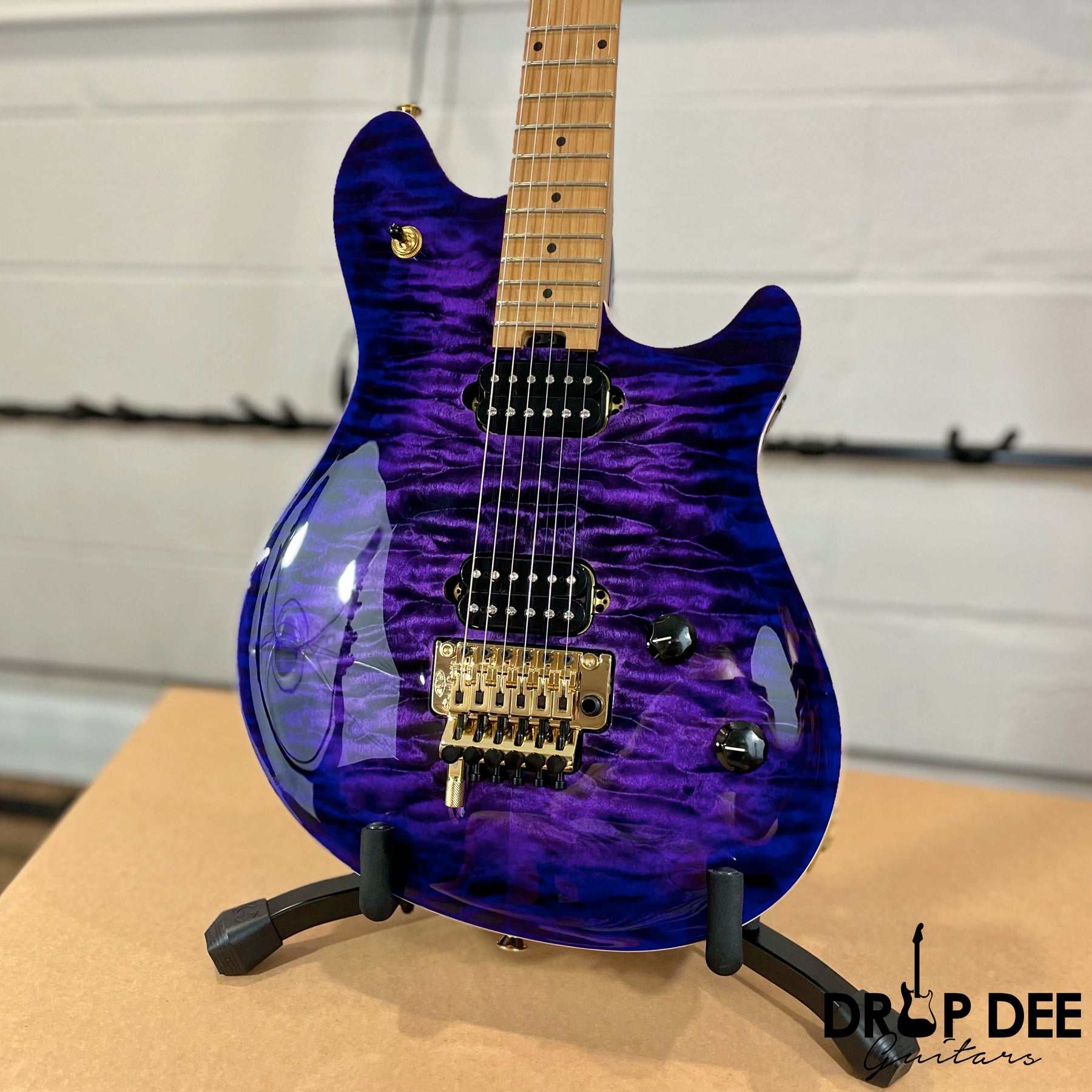

The Wolfgang Special QM features a basswood body with an arched quilt maple top and a robust graphite-reinforced bolt-on quartersawn baked maple neck. The neck is carved and rolled to Eddie Van Halen’s exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12”-16” compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

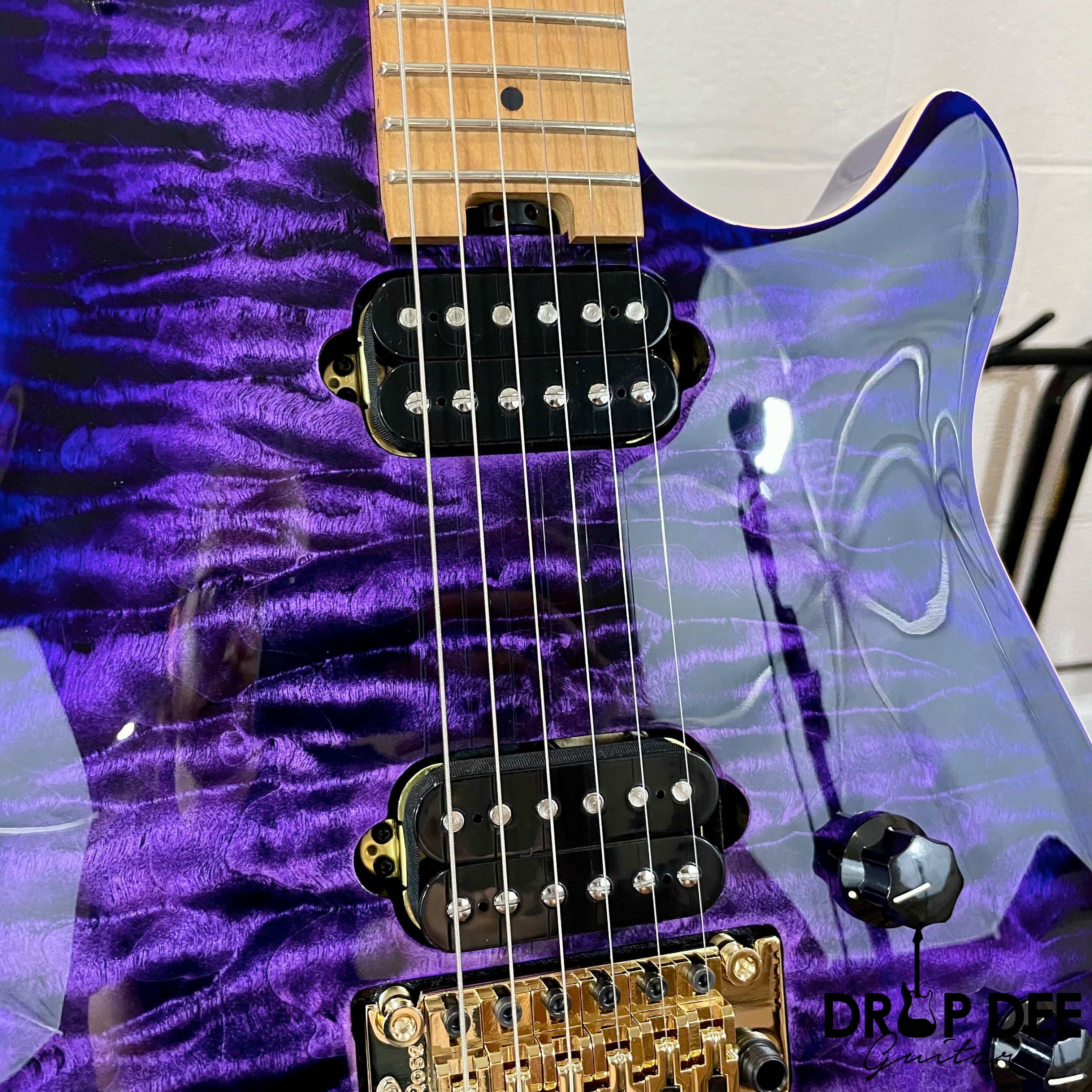

A pair of flagship custom-designed EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Condition: This is a brand new Wolfgang Special QM. It comes equipped with our Pro-Tech setup and EVH’s warranty. Drop Dee Guitars is an authorized dealer of EVH Guitars.

Pro-Tech Setup: Our Pro-Tech setup makes your guitar ready to rock straight out of the box. Here’s how..

• Make any adjustments so the neck is straight to avoid any fret buzzing and for comfort
• Check the nut and nut slots for any adjustments/filing to prevent any tuning issues, as well as for comfort at the lower frets
• Make any adjustments to the bridge/tremolo system so it’s in the proper position for tuning stability
• Set the action to a height that feels comfortable for each guitar
• Set the intonation so you’re in tune everywhere on the neck

All of these steps will make your brand new guitar feel as comfortable as ever and ready to play straight out of the box!

Specs

Body

• Body Finish: Gloss Urethane
• Body Shape: Wolfgang®
• Body Material: Basswood
• Body Binding: 1-Ply Cream
• Body Top: Arched Quilt Maple

Electronics

• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

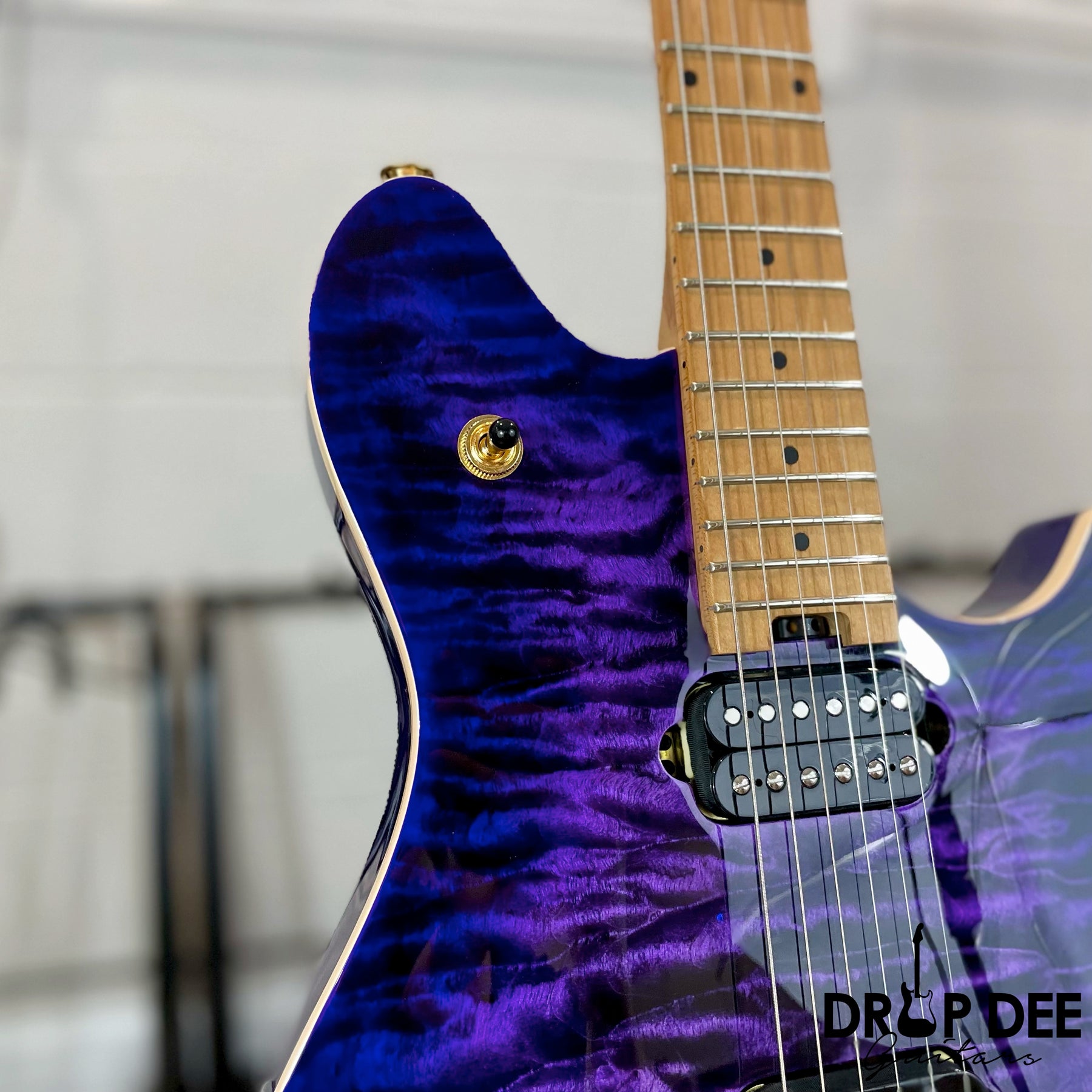

• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Pickup Configuration: HH

Neck

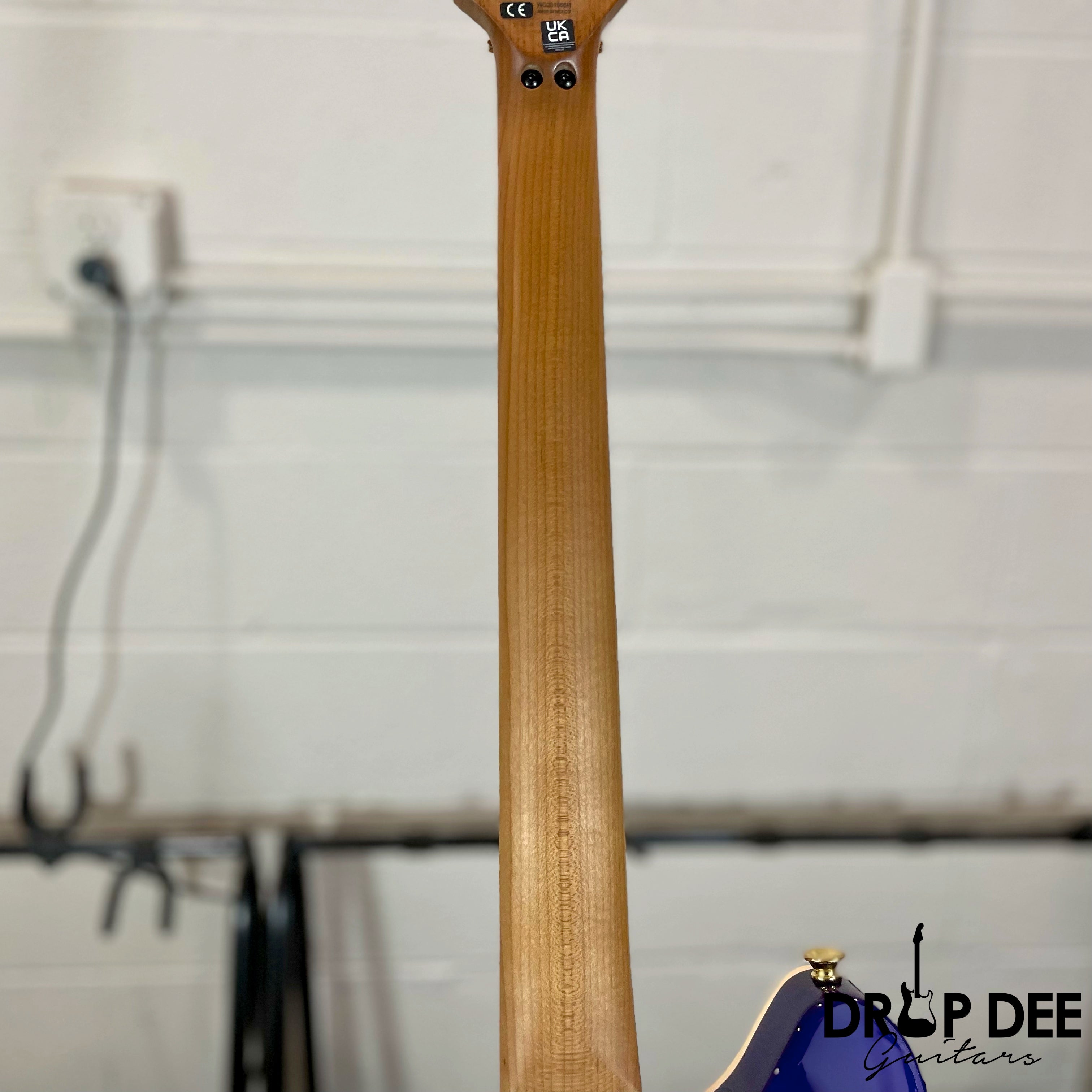

• Neck Material: Quartersawn Baked Maple

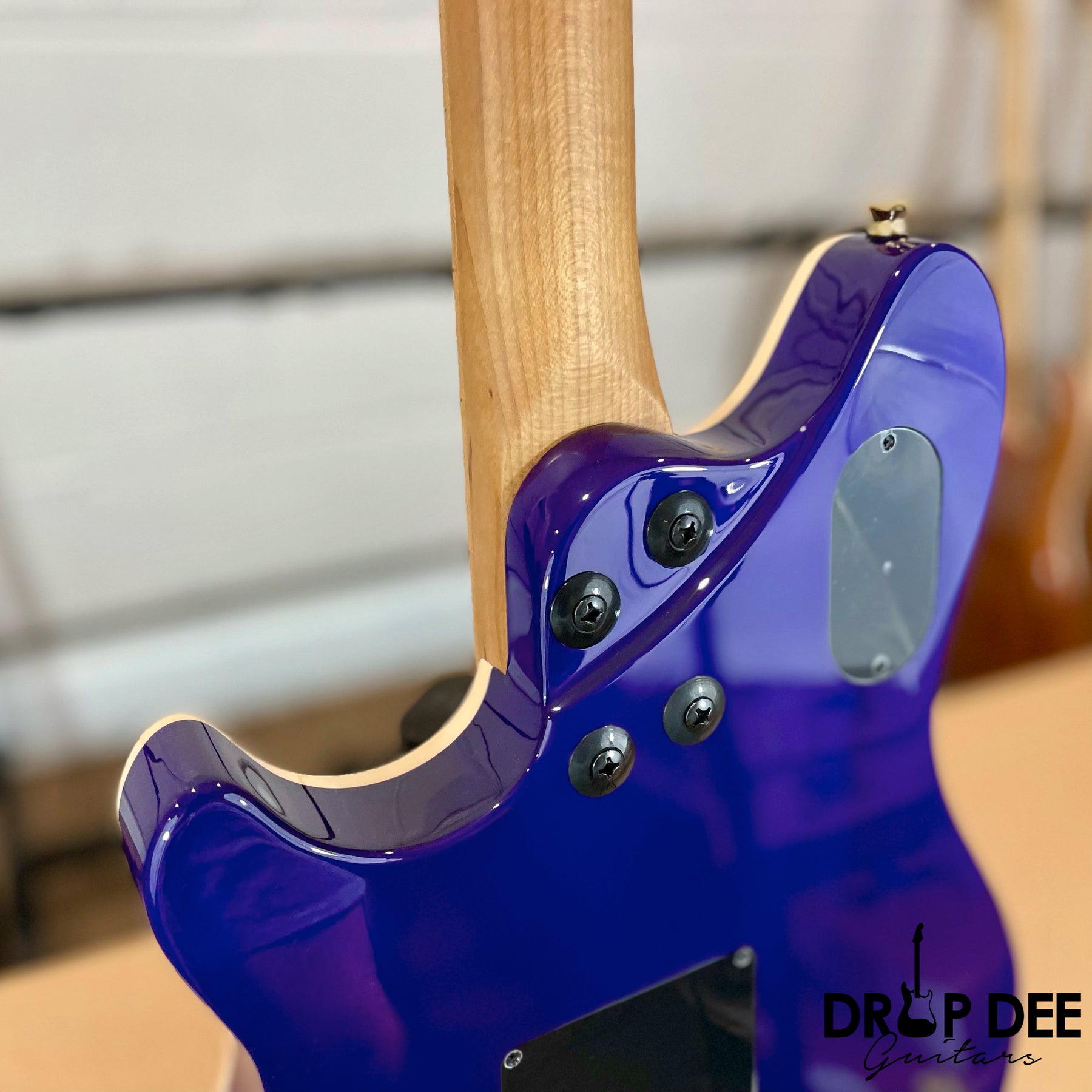

• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .805" at 3rd & .890" at 12th Fret
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Wolfgang® Backshape
• Scale Length: 25.5" (648 mm)

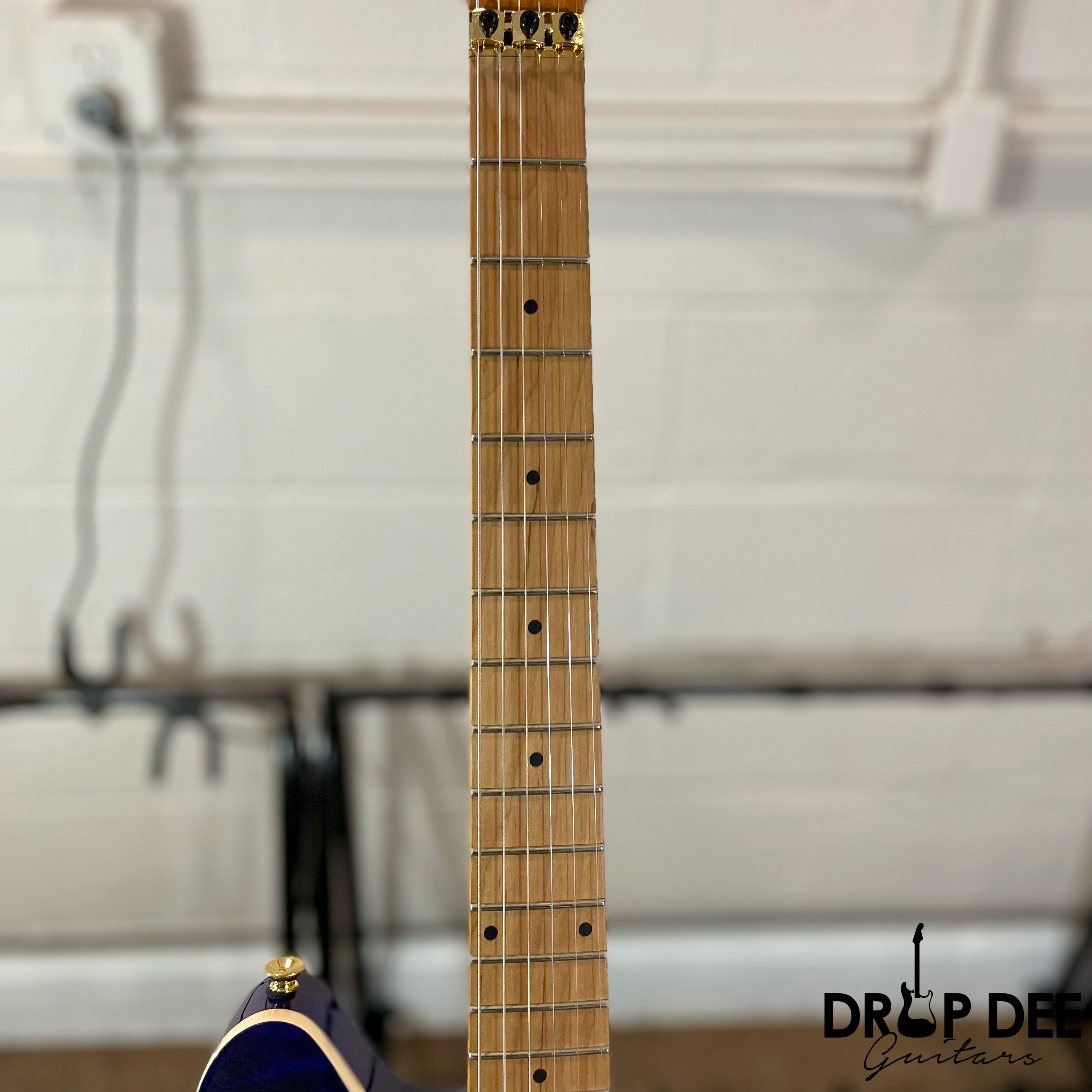

• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

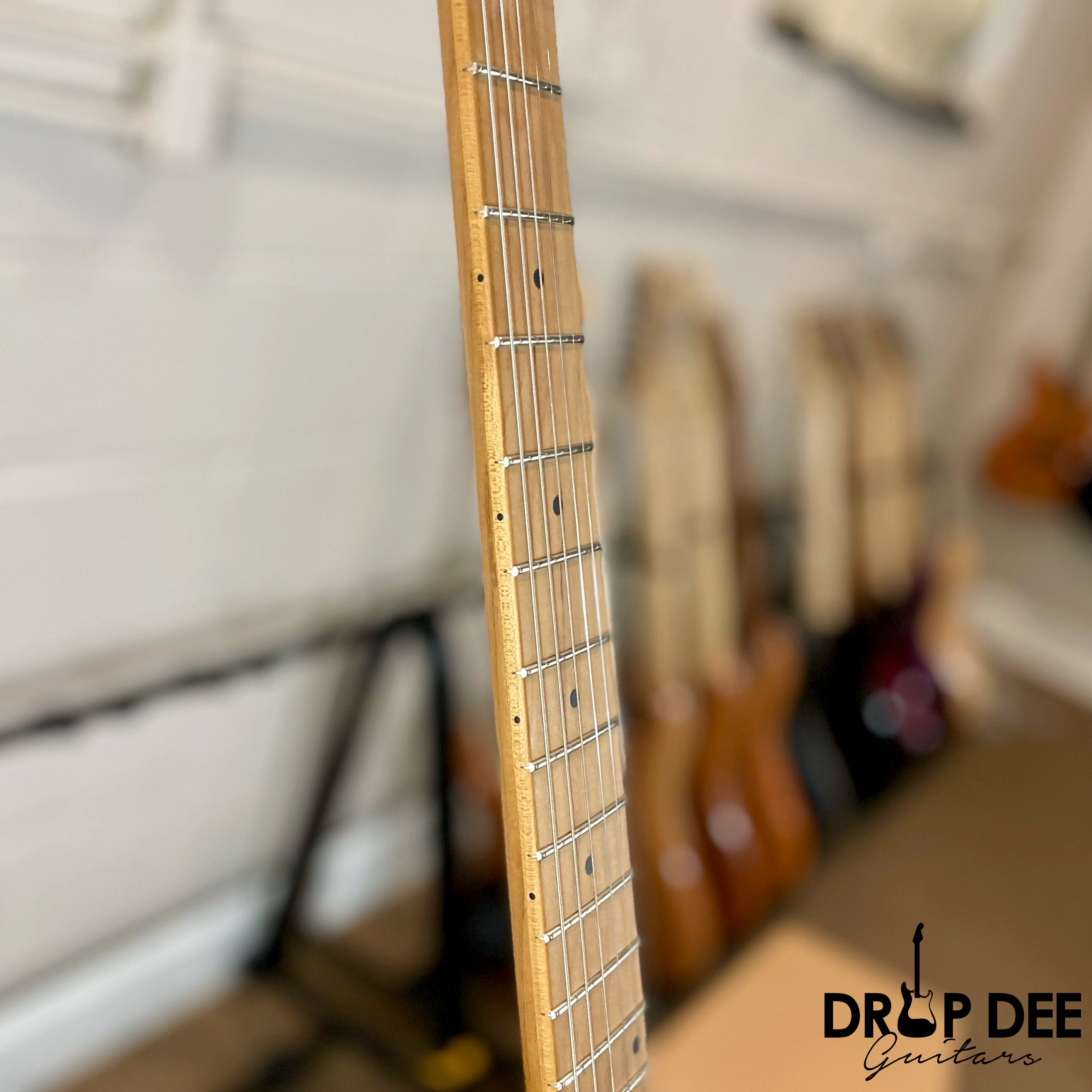

• Fingerboard Material: Baked Maple
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® R2 Locking
• Nut Width: 1.625" (41.3 mm)
• Position Inlays: Black Dot
• Side Dots: Black
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose® Retainer Bar

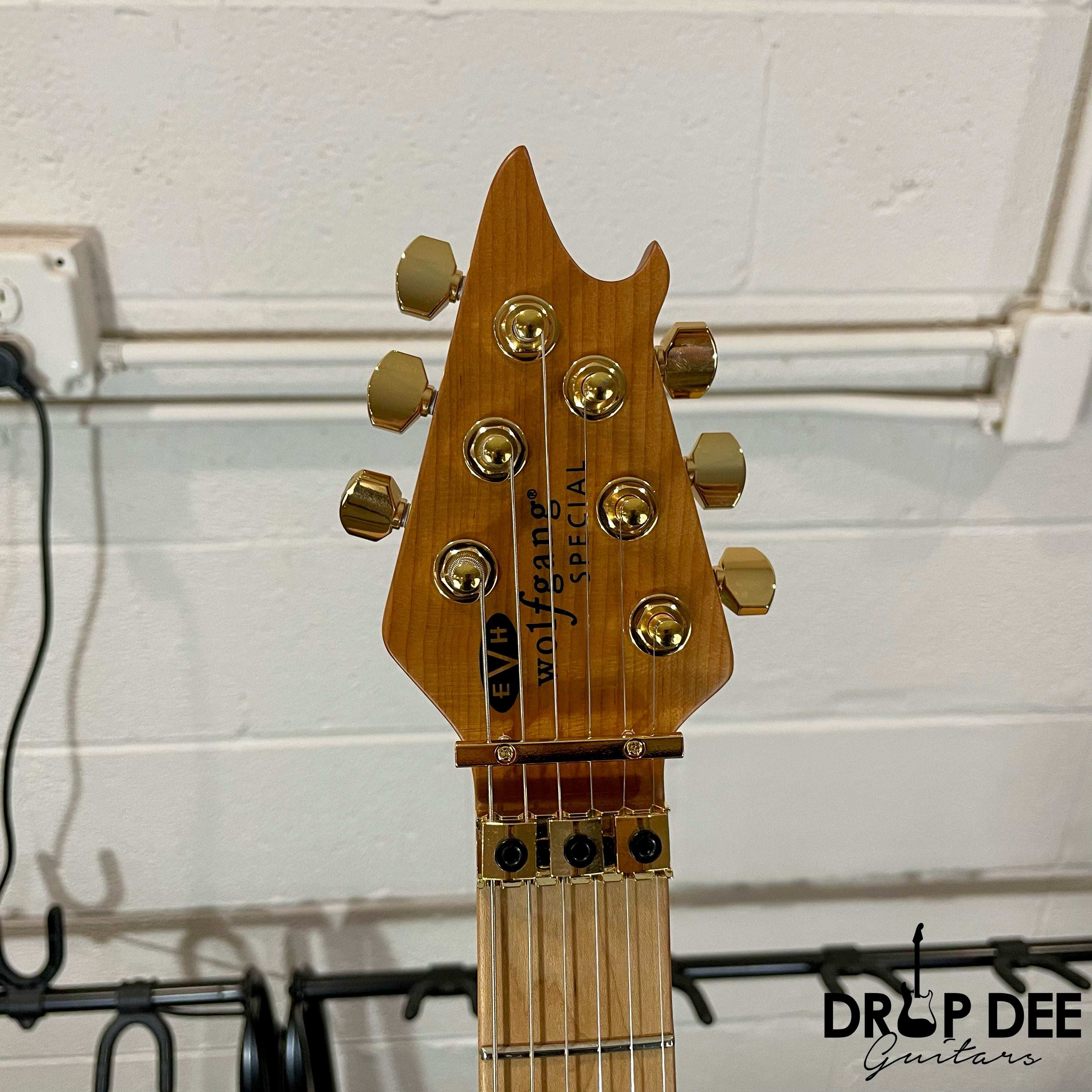

• Headstock: EVH® Wolfgang®

Hardware

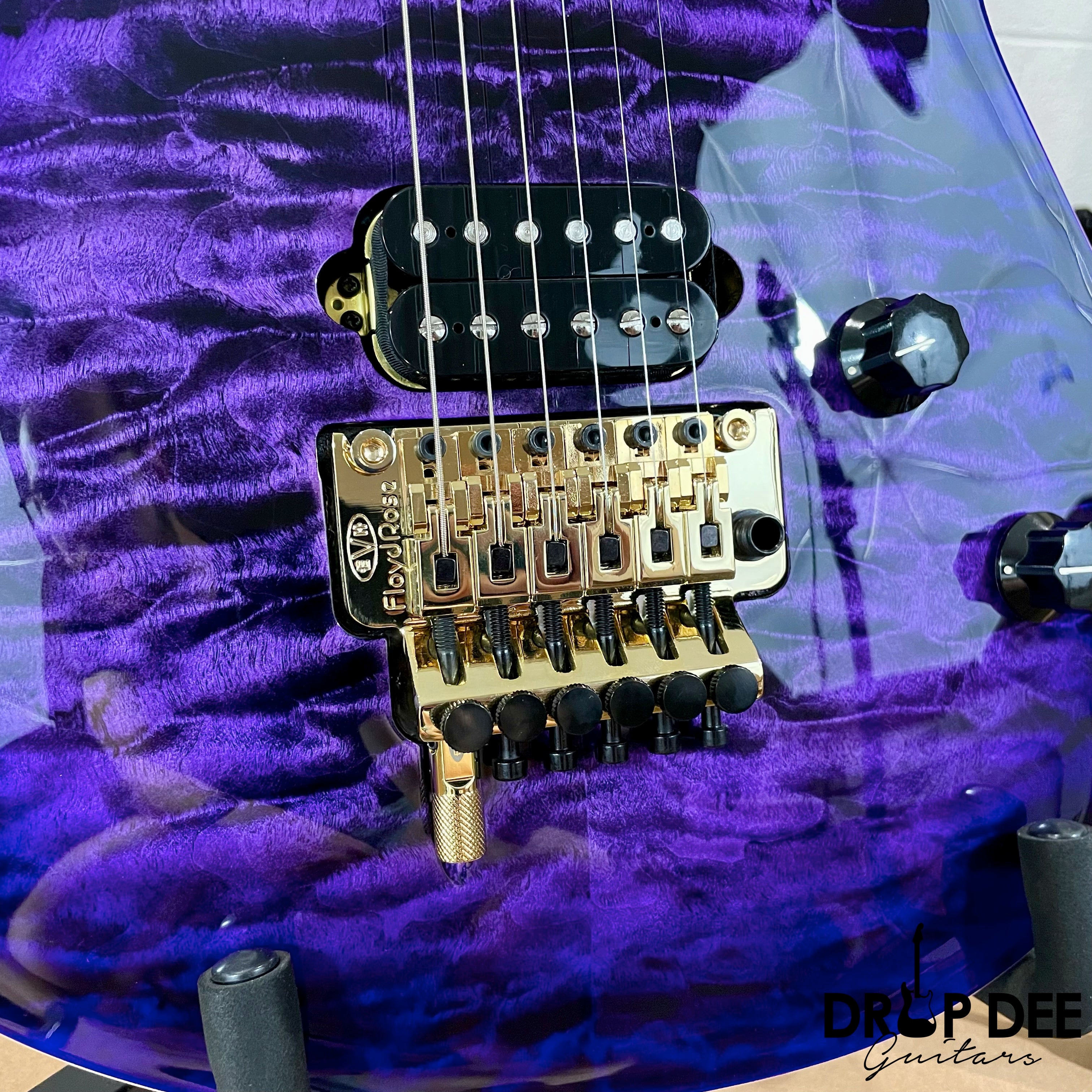

• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Hardware Finish: Gold
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tremolo Block: Brass

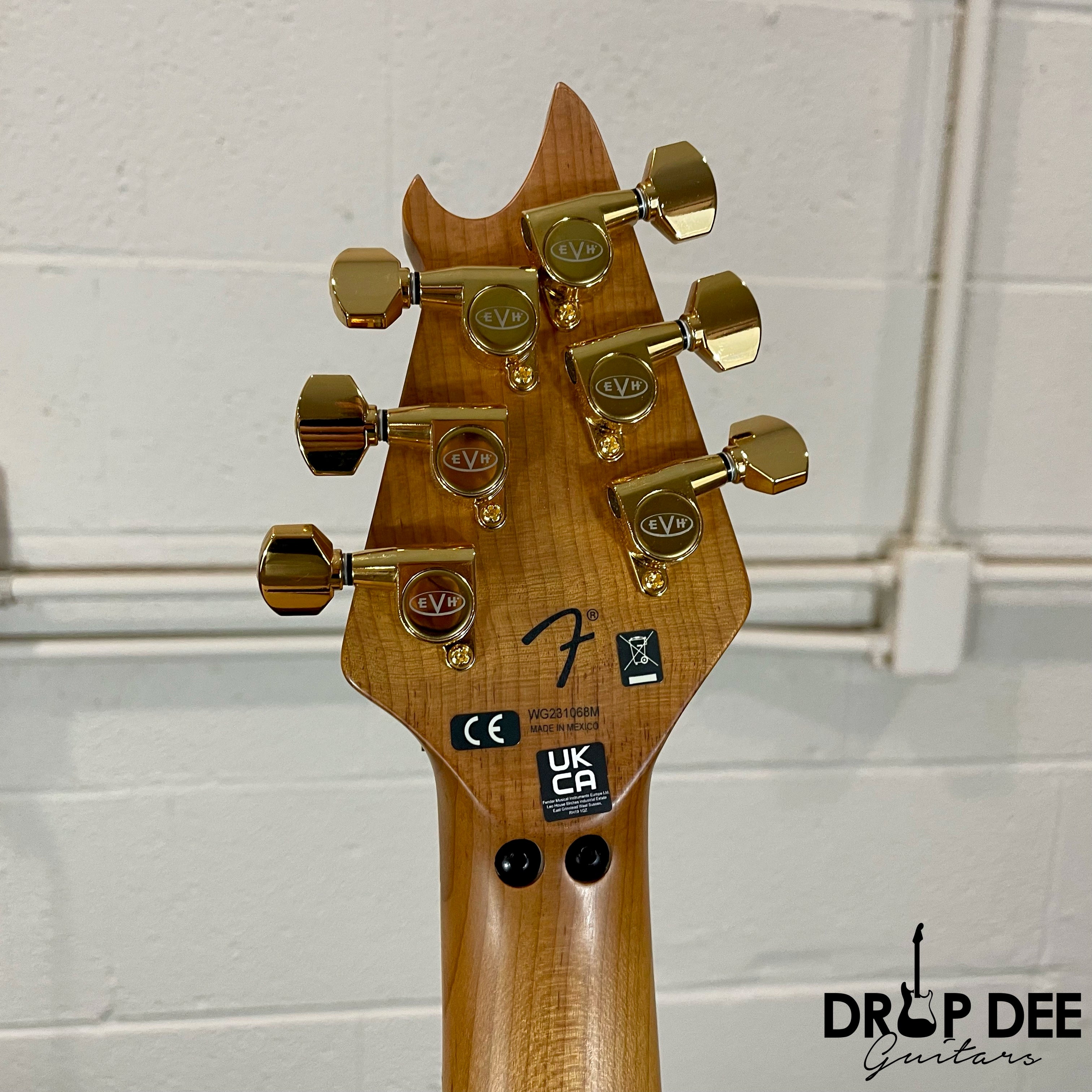

• Tuning Machines: EVH®-Branded Gotoh®
• Control Knobs: Black Plastic with White Indicator

Miscellaneous

• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Oversized
