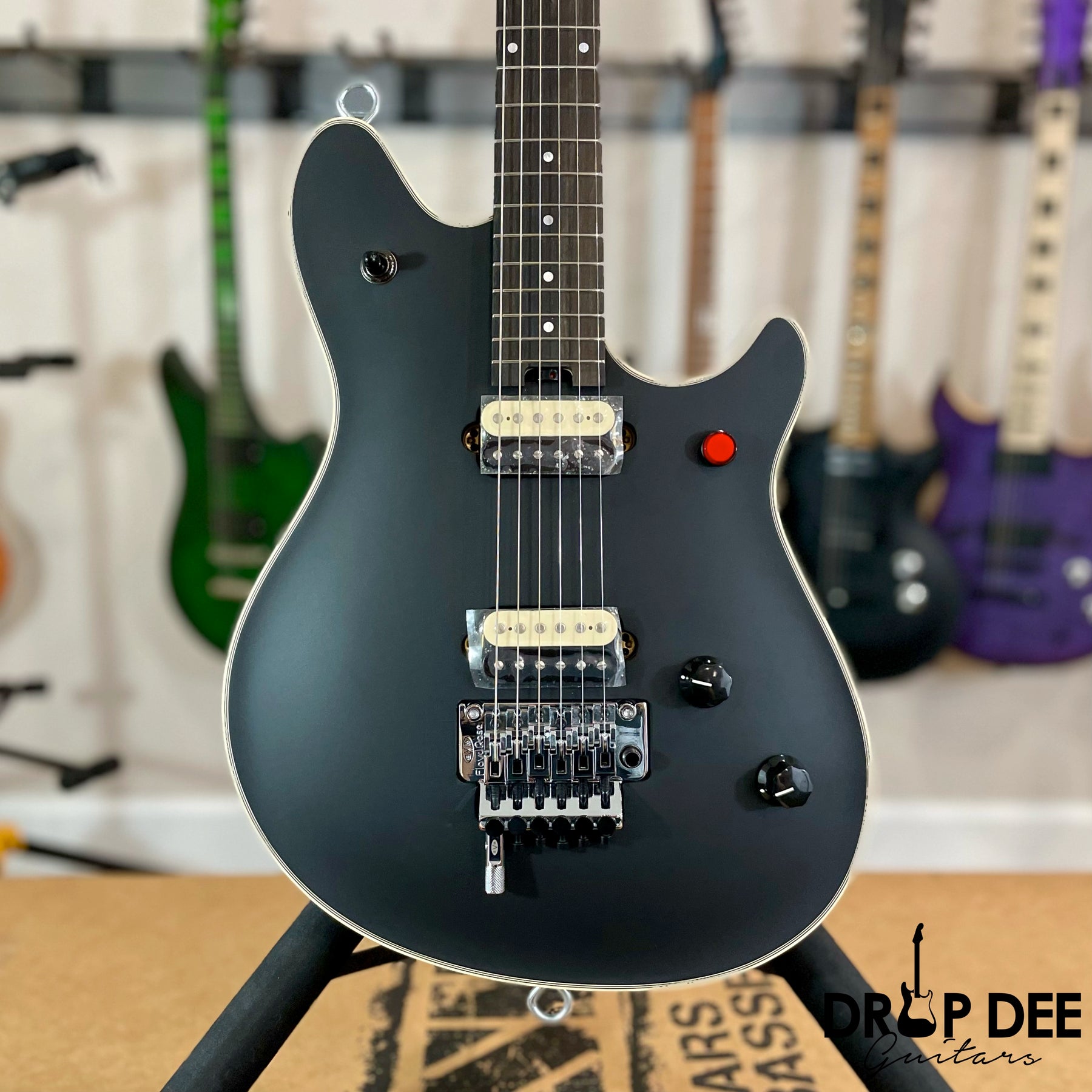

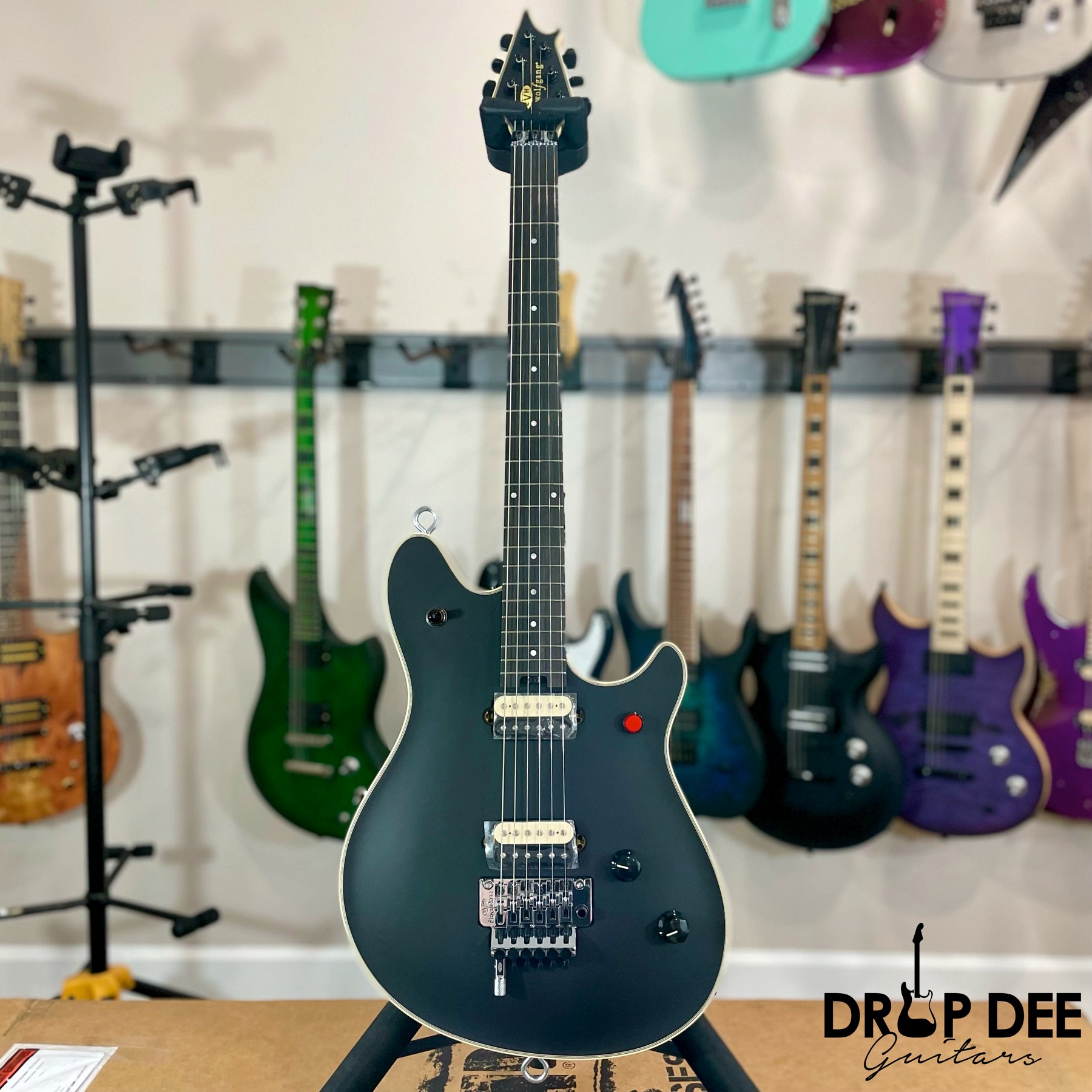

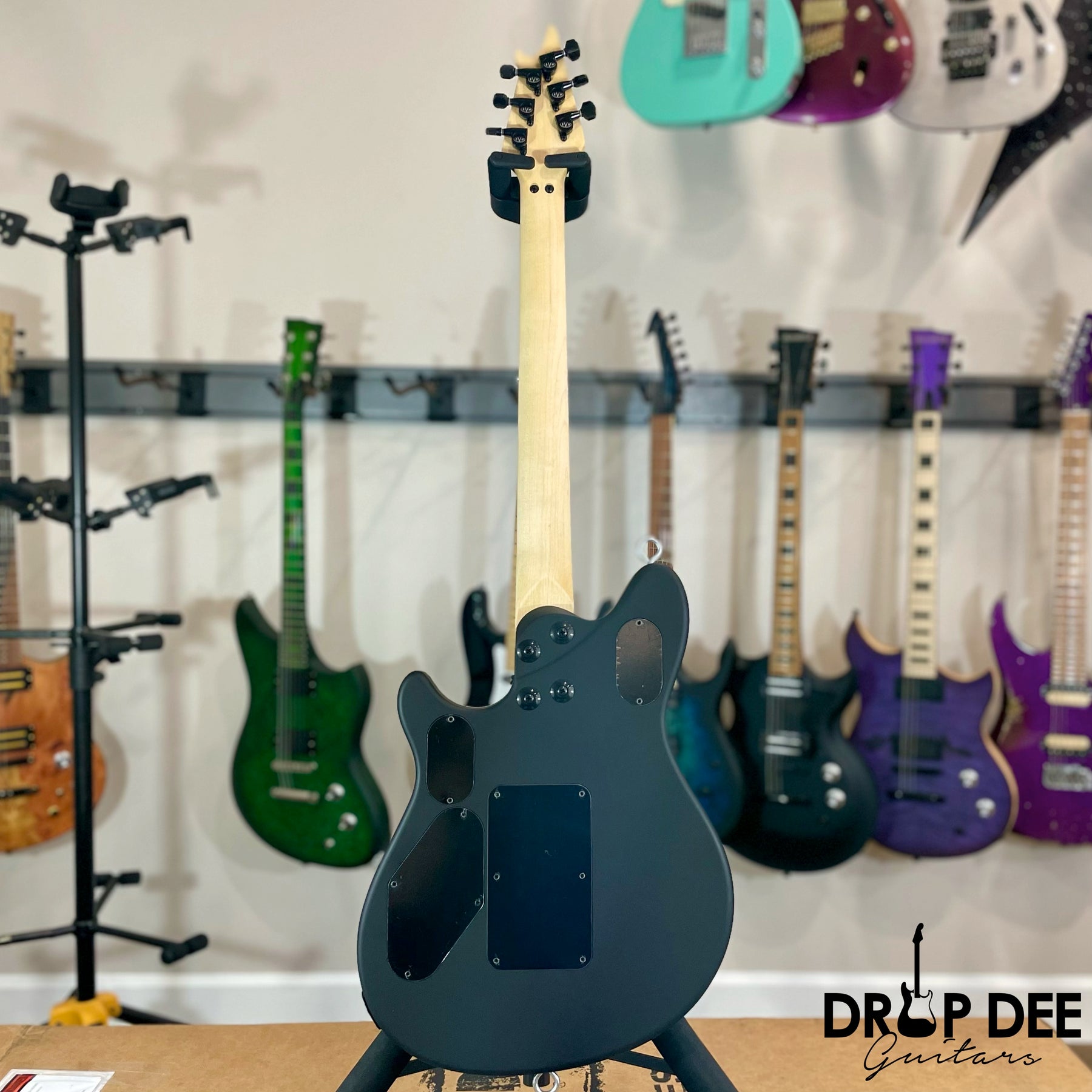

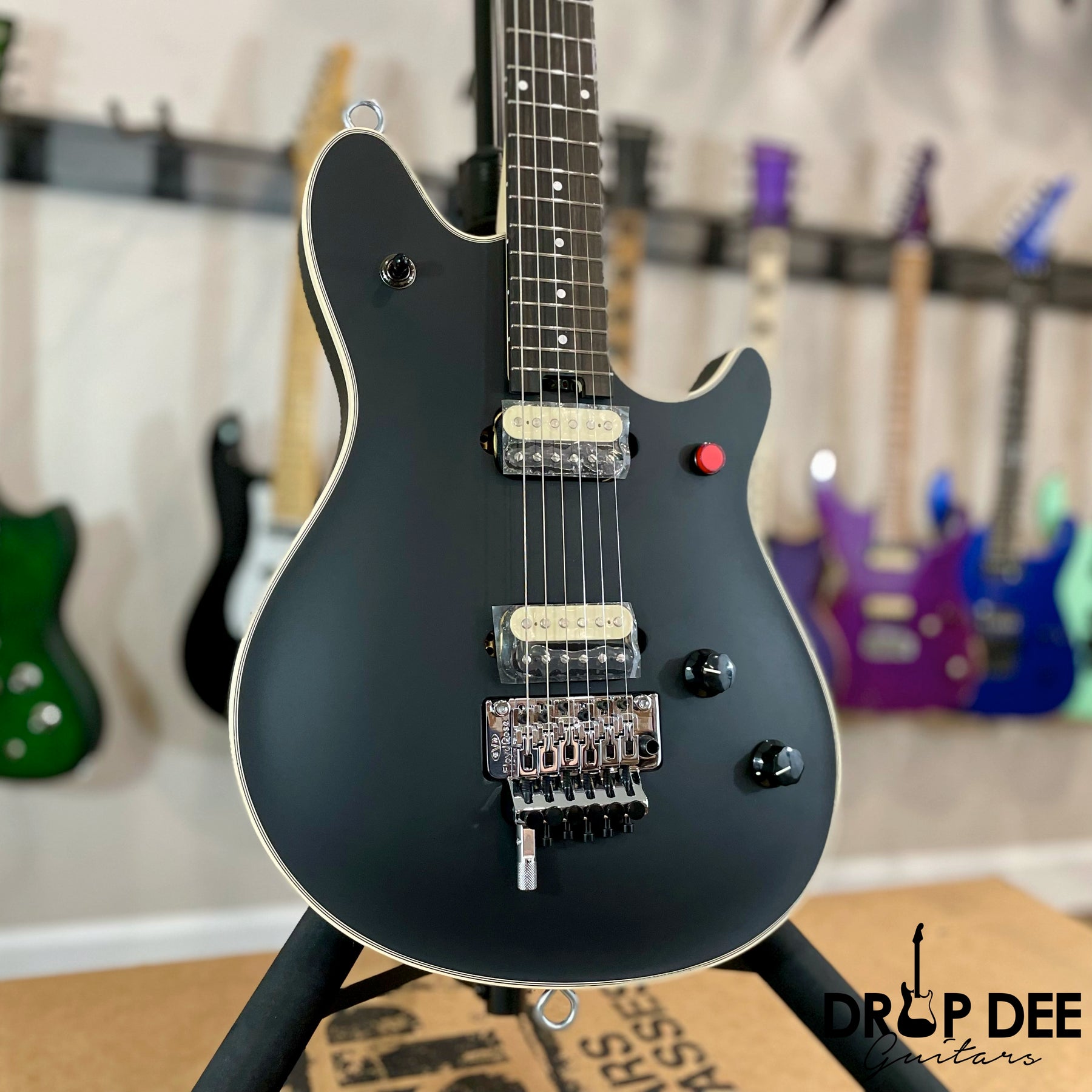

EVH Wolfgang USA Edward Van Halen Signature Electric Guitar w/ Case

EVH brings you the Wolfgang® USA Edward Van Halen Signature model, loaded with Eddie Van Halen’s most up-to-date specs along with the classic looks and behemoth sound you’ve come to expect from an instrument bearing his name.

The basswood body features a big-leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement and a hand-rubbed back finish for smooth, fast playability. The 12"-16" compound radius ebony fingerboard has 22 vintage stainless steel frets, pearloid (Ivory finish) or dot (Stealth finish) inlays, and a convenient heel-mount truss rod adjustment wheel.

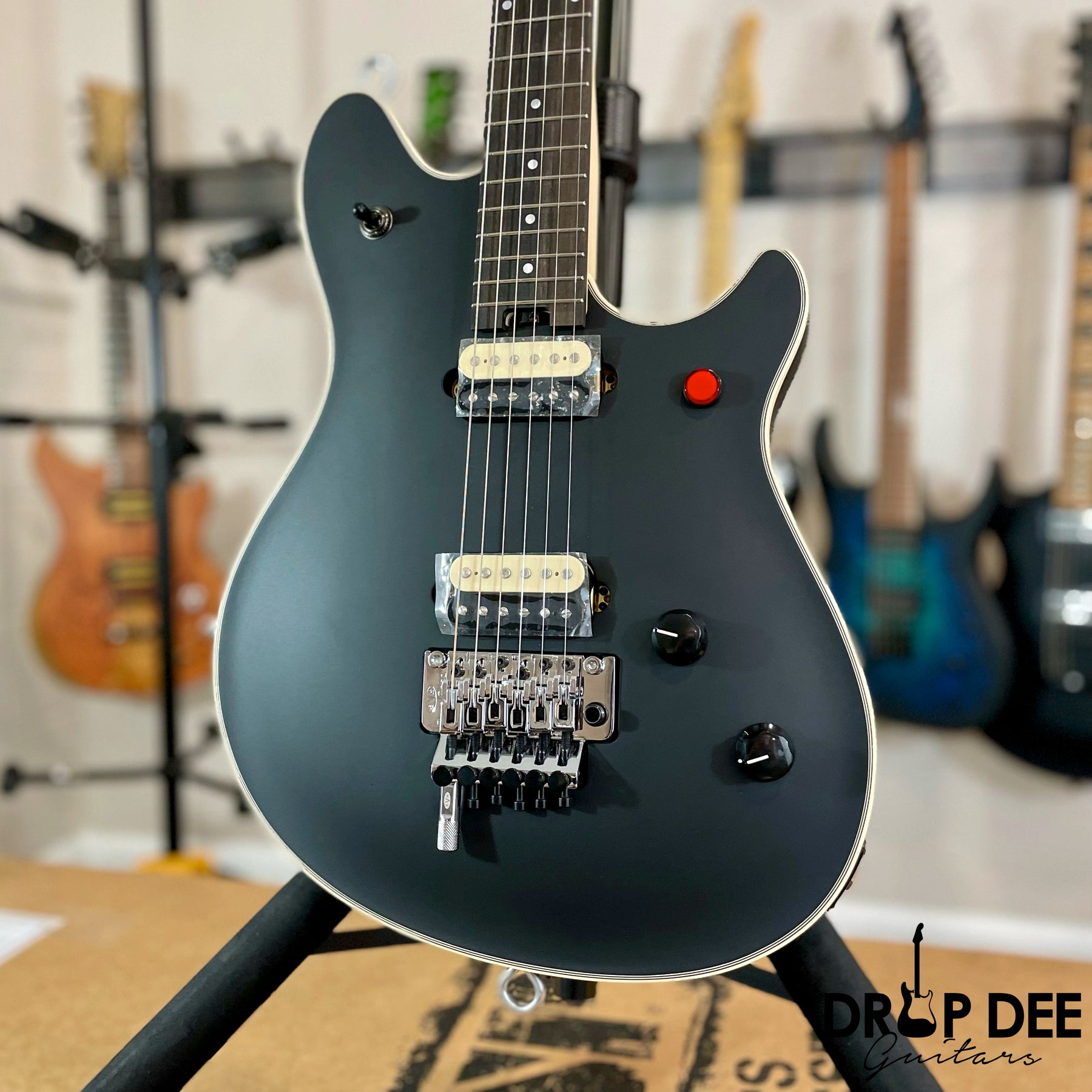

Experience scorching and well-balanced tone with a custom-wound alnico 2 EVH® Wolfgang® Humbucker in the bridge and a newly added alnico 3 custom-wound EVH® Wolfgang Humbucker in the neck, both controlled by a special reverse oriented three-way toggle switch. Stutter-stop à la “You Really Got Me” with the red-button kill switch and play “Cathedral” without any crackle or pop, courtesy of the EVH High Friction (Tone) Pot and an EVH “HPU” or High Performance Upgrade, custom-made Low Friction (Volume) Pot.

Sturdy and steadfast, the EVH-branded Floyd Rose® locking tremolo provides endless sustain and precise tuning regardless of how many dive bombs you rip or how drastically you attack your whammy-bar. The EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.

Boasts elegant and classic style in Ivory or Stealth finishes with chrome hardware, black speed knobs and dog leash strap/eye-bolt clasps. A hardshell EVH Striped SKB case and EVH leather strap included.

Condition: This is a brand new Wolfgang USA Edward Van Halen Signature. It comes equipped with our Pro-Tech setup and EVH’s warranty. Drop Dee Guitars is an authorized dealer of EVH Guitars.

Pro-Tech Setup: Our Pro-Tech setup makes your guitar ready to rock straight out of the box. Here’s how..

• Make any adjustments so the neck is straight to avoid any fret buzzing and for comfort
• Check the nut and nut slots for any adjustments/filing to prevent any tuning issues, as well as for comfort at the lower frets
• Make any adjustments to the bridge/tremolo system so it’s in the proper position for tuning stability
• Set the action to a height that feels comfortable for each guitar
• Set the intonation so you’re in tune everywhere on the neck

All of these steps will make your brand new guitar feel as comfortable as ever and ready to play straight out of the box!

Specs

Body

• Body Finish: Satin Urethane
• Body Shape: Wolfgang®
• Body Material: Basswood
• Body Binding: 5-Ply

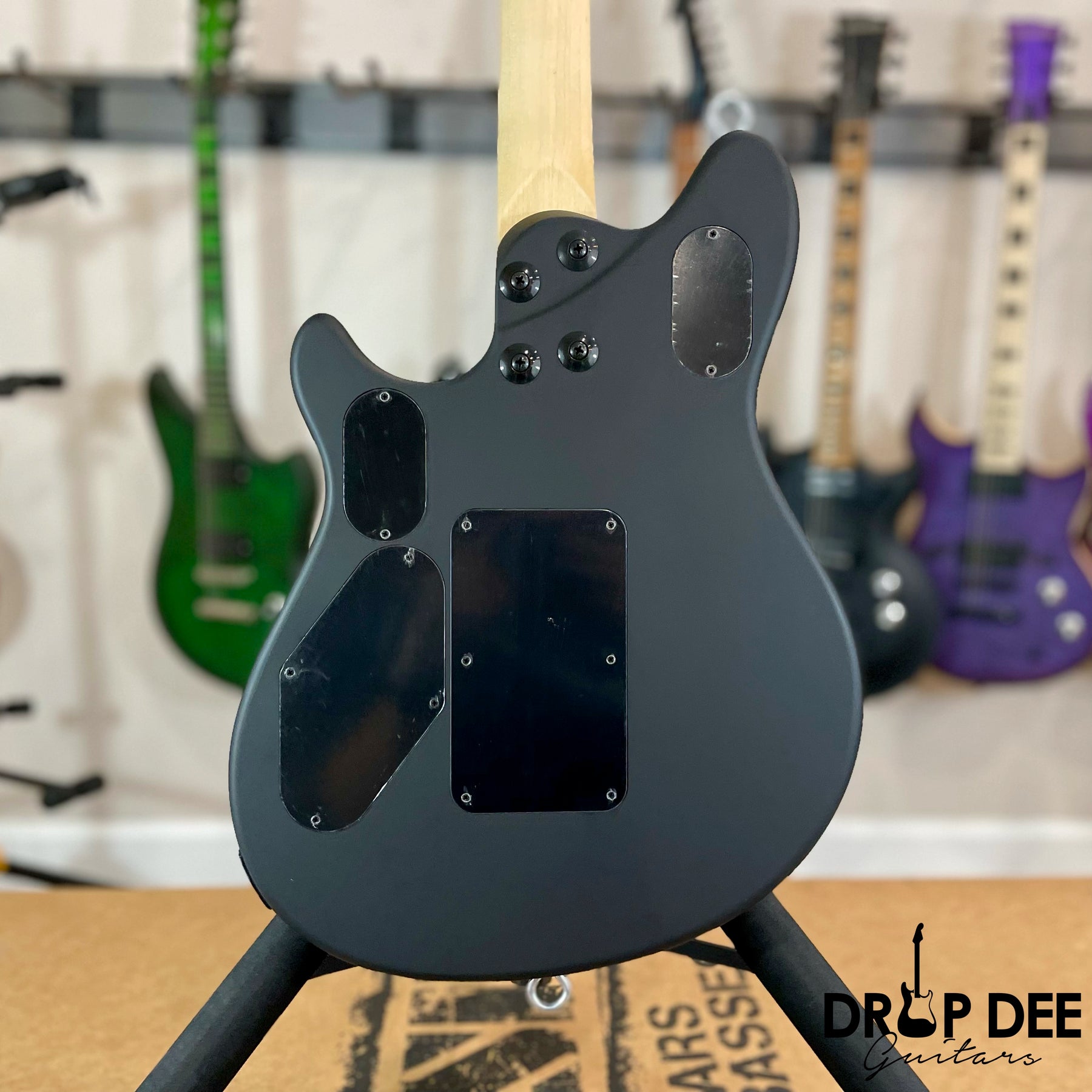

• Body Back: Basswood
• Body Top: Big Lead Maple

Electronics

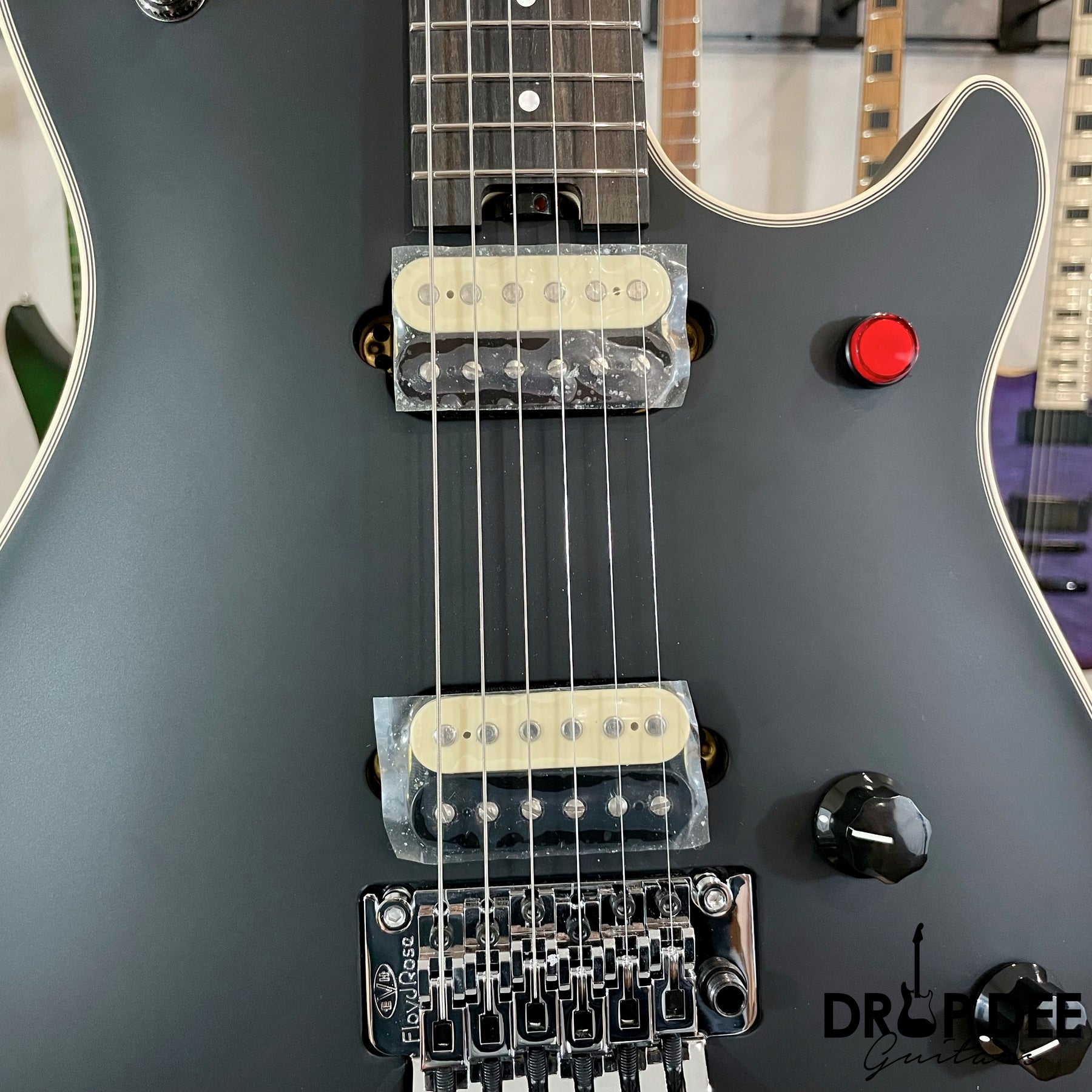

• Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
• Neck Pickup: Direct Mount EVH® Wolfgang® AL3 Humbucking
• Pickup Color: Zebra
• Controls: Volume (EVH® BI Tech PHU Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
• Pickup Switching: EVH Reverse-Style 3-Position Switching: Position 1. Neck Pickup, Position 2. Neck and Bridge Pickups, Position 3. Bridge Pickup

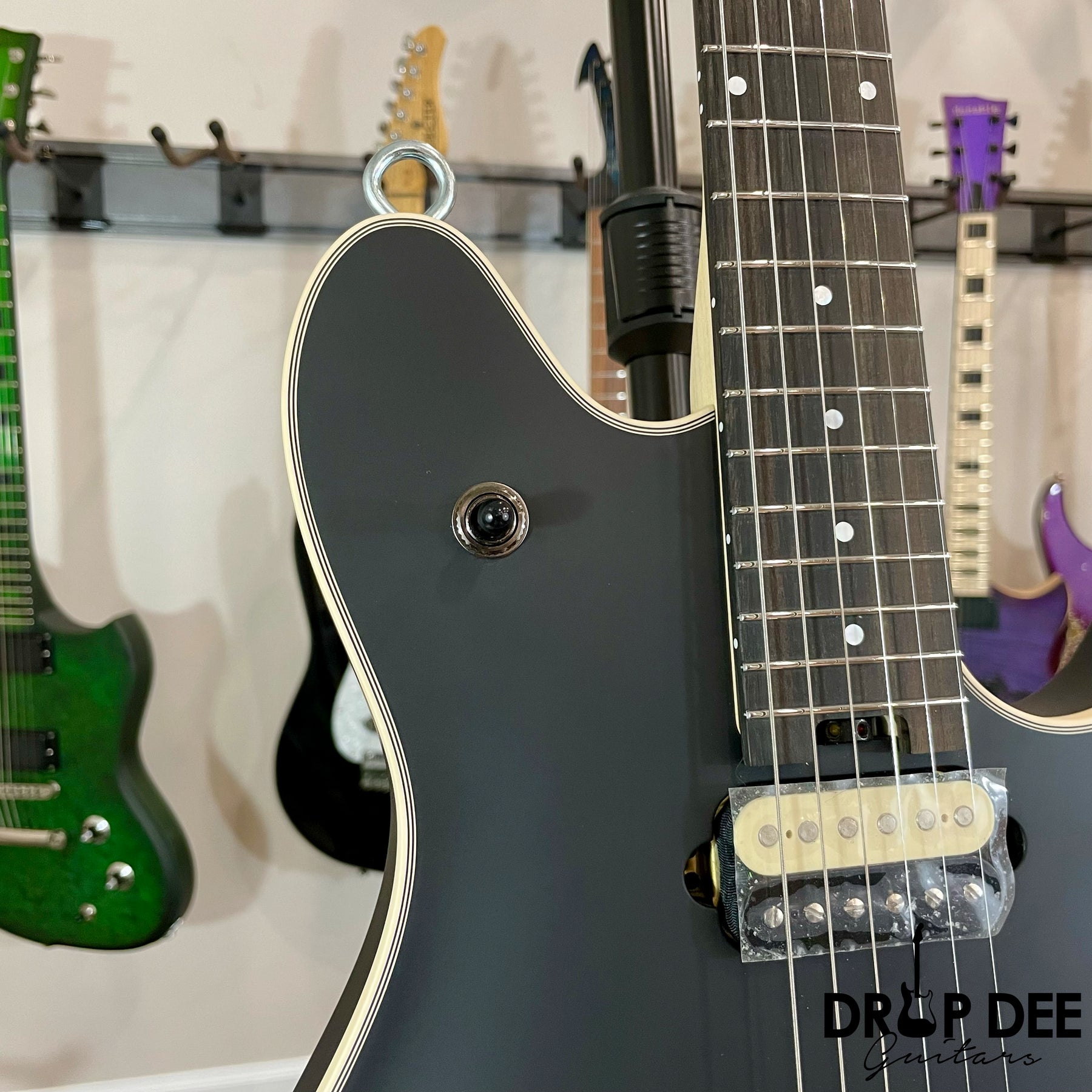

• Auxiliary Switch: Kill Switch
• Pickup Configuration: HH

Neck

• Neck Material: Quartersawn Maple

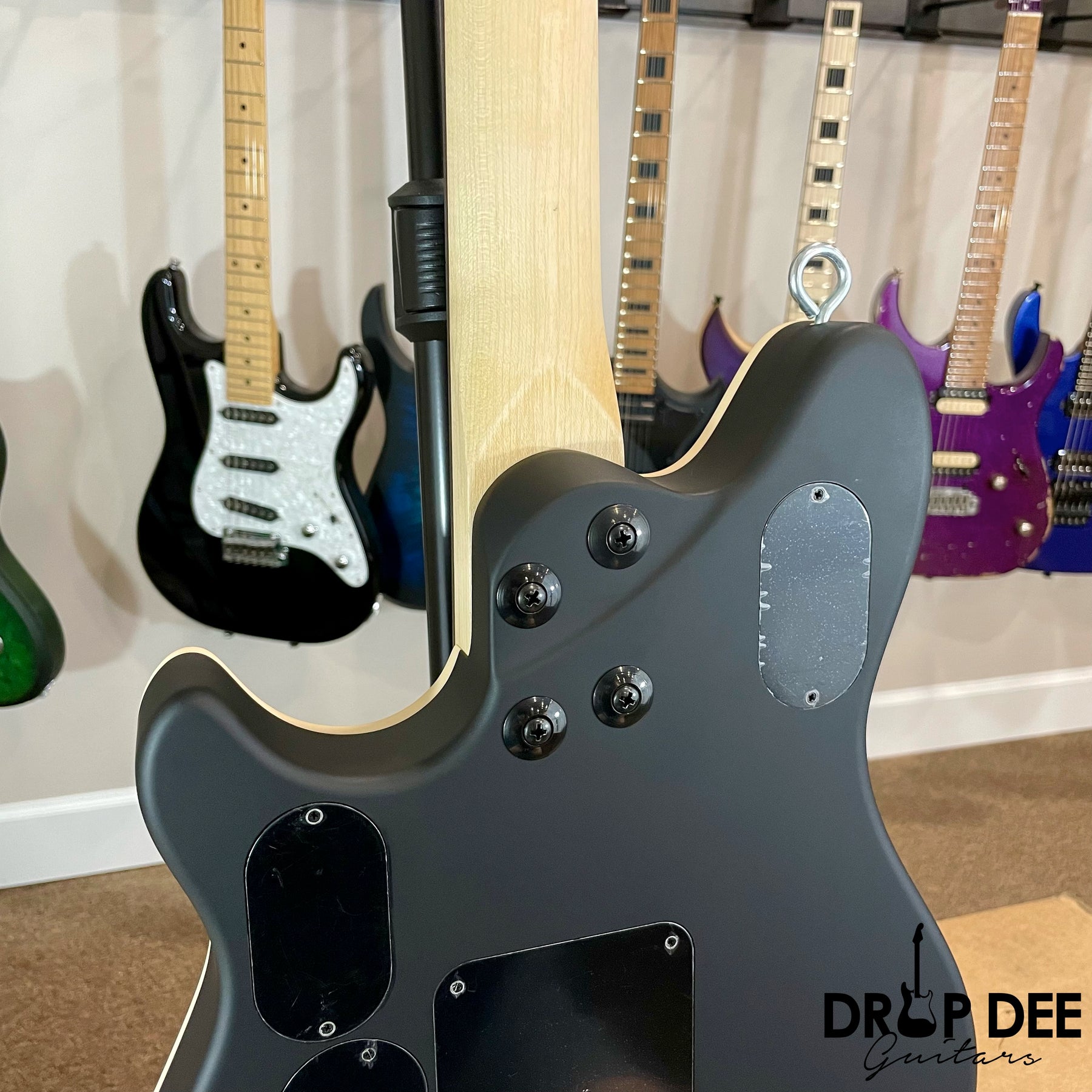

• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .805" at 3rd & .890" at 12th Fret

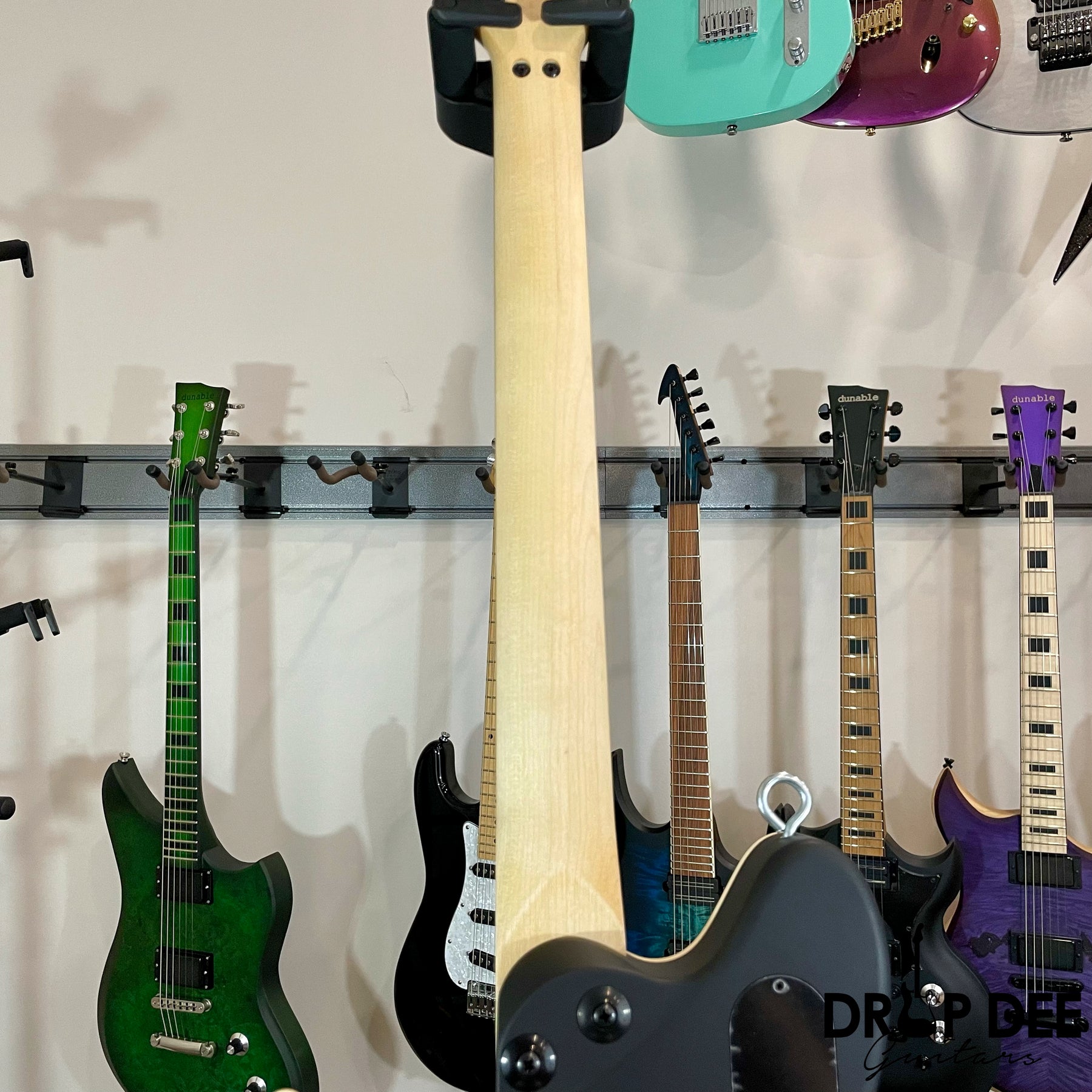

• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Wolfgang® Backshape
• Scale Length: 25.5" (648 mm)
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

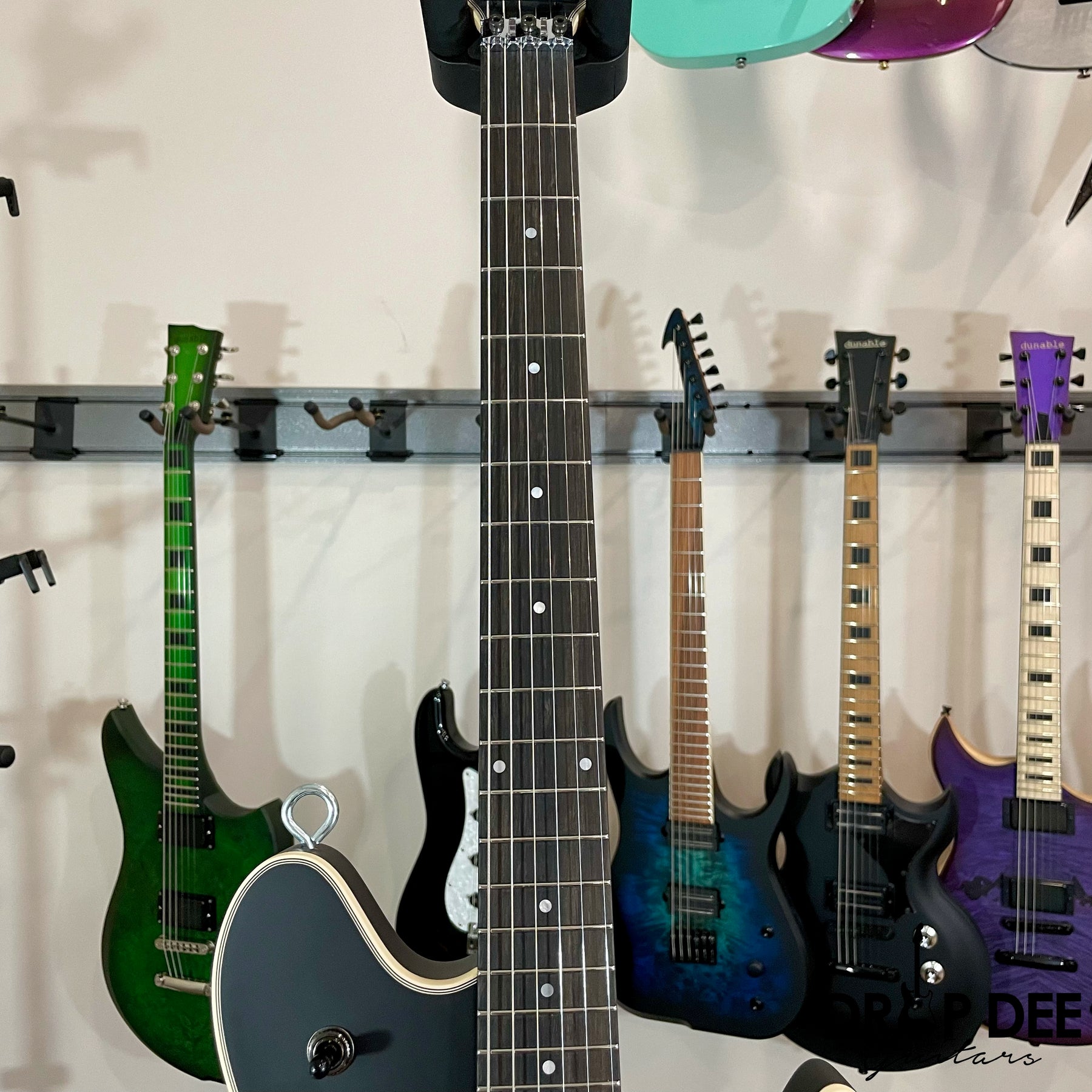

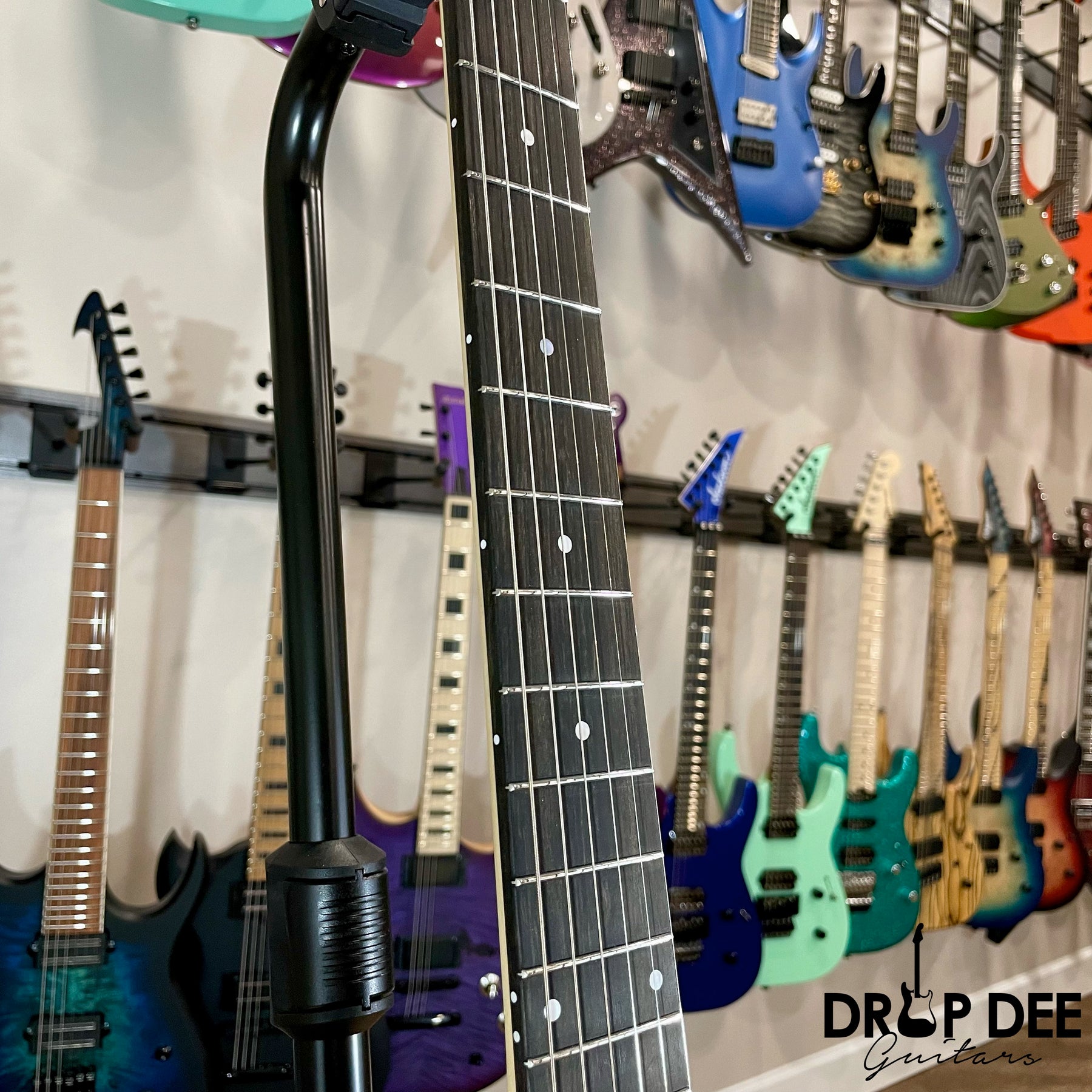

• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Vintage Stainless Steel
• Nut Material: Floyd Rose® R2 Locking
• Nut Width: 1.650" (42 mm)
• Position Inlays: Pearloid Dot
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose® Retainer Bar

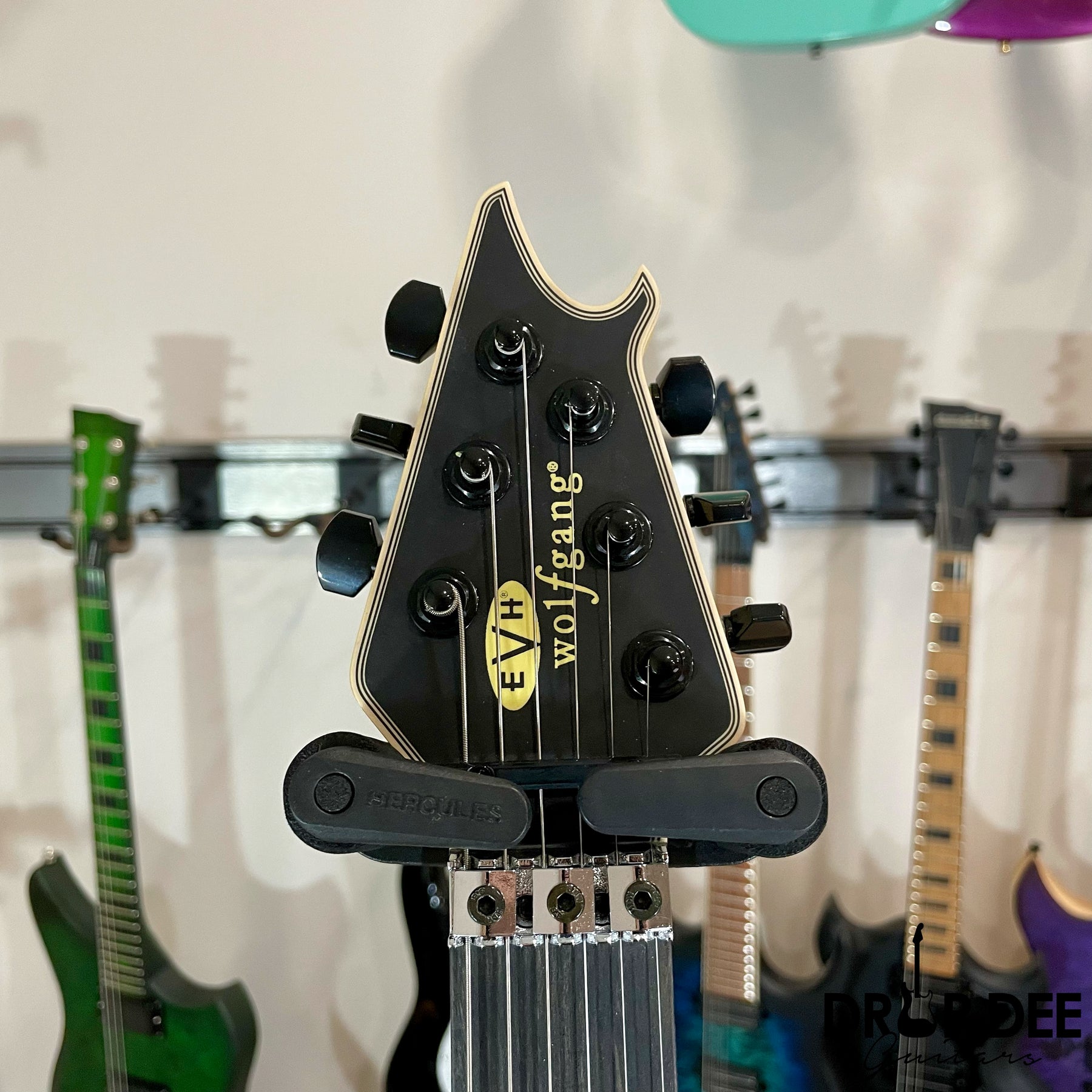

• Headstock: EVH® Wolfgang®

Hardware

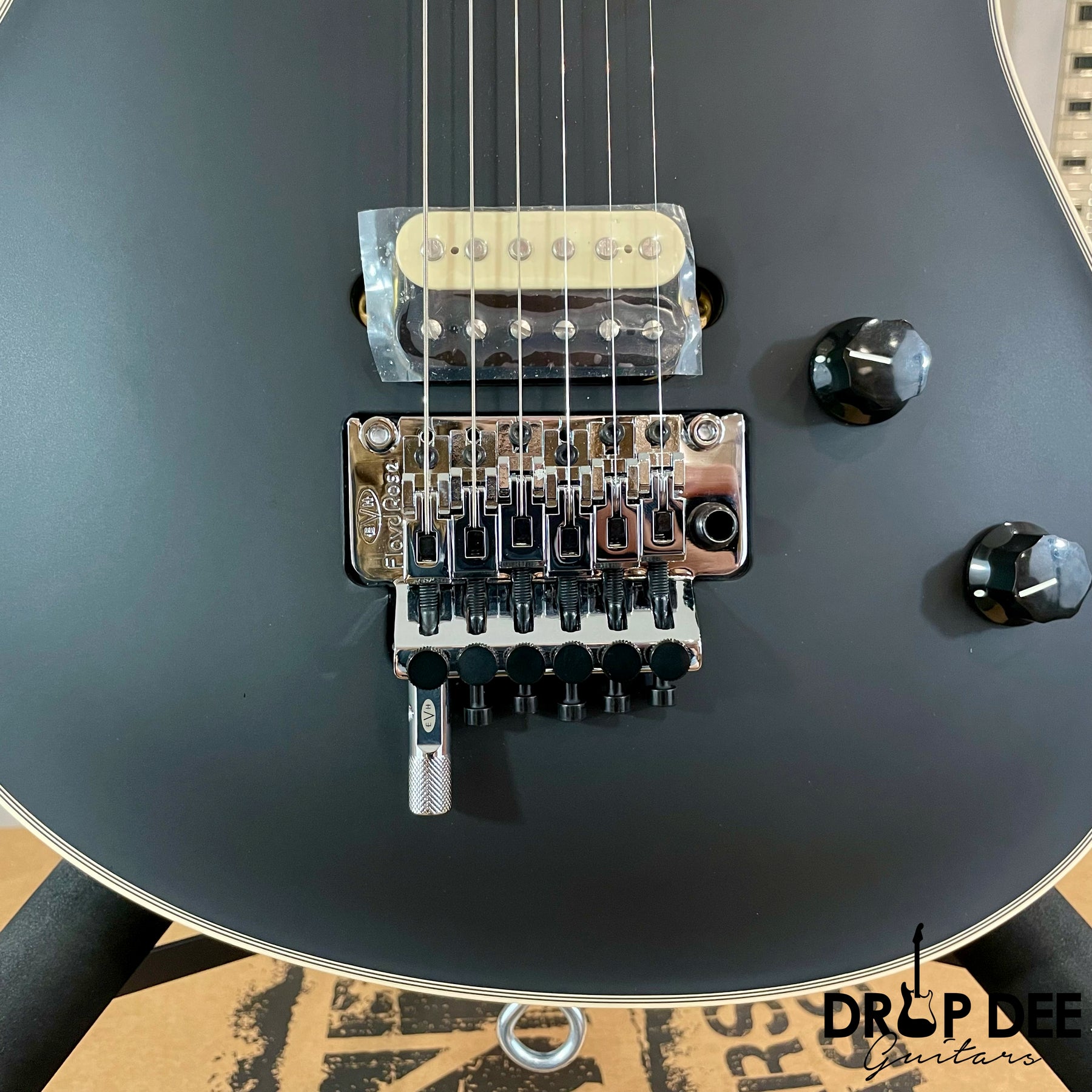

• Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
• Hardware Finish: Chrome
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tremolo Block: Brass

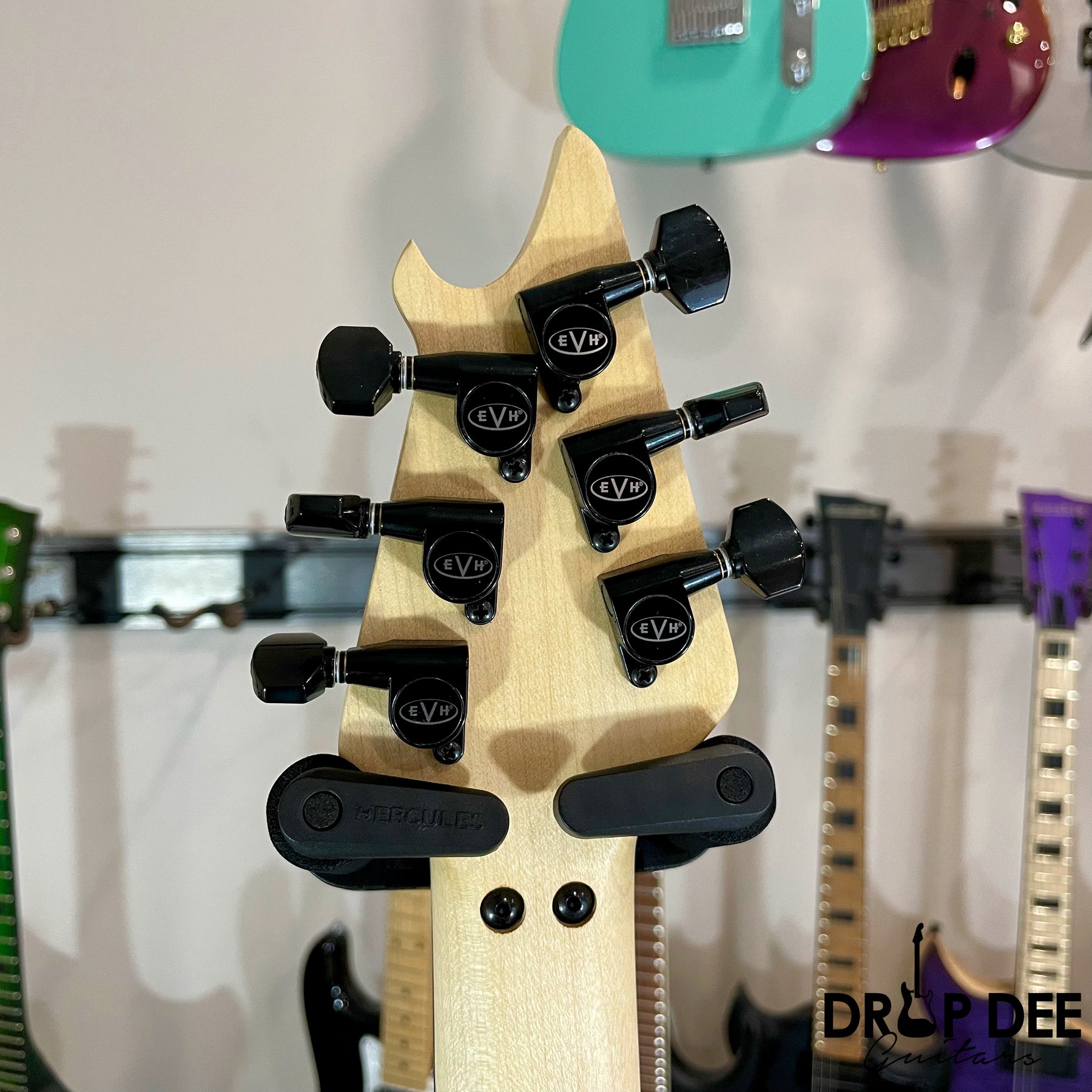

• Tuning Machines: EVH®-Branded Gotoh®
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black

Miscellaneous

• Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
• Strap Buttons: Oversized

Accessories

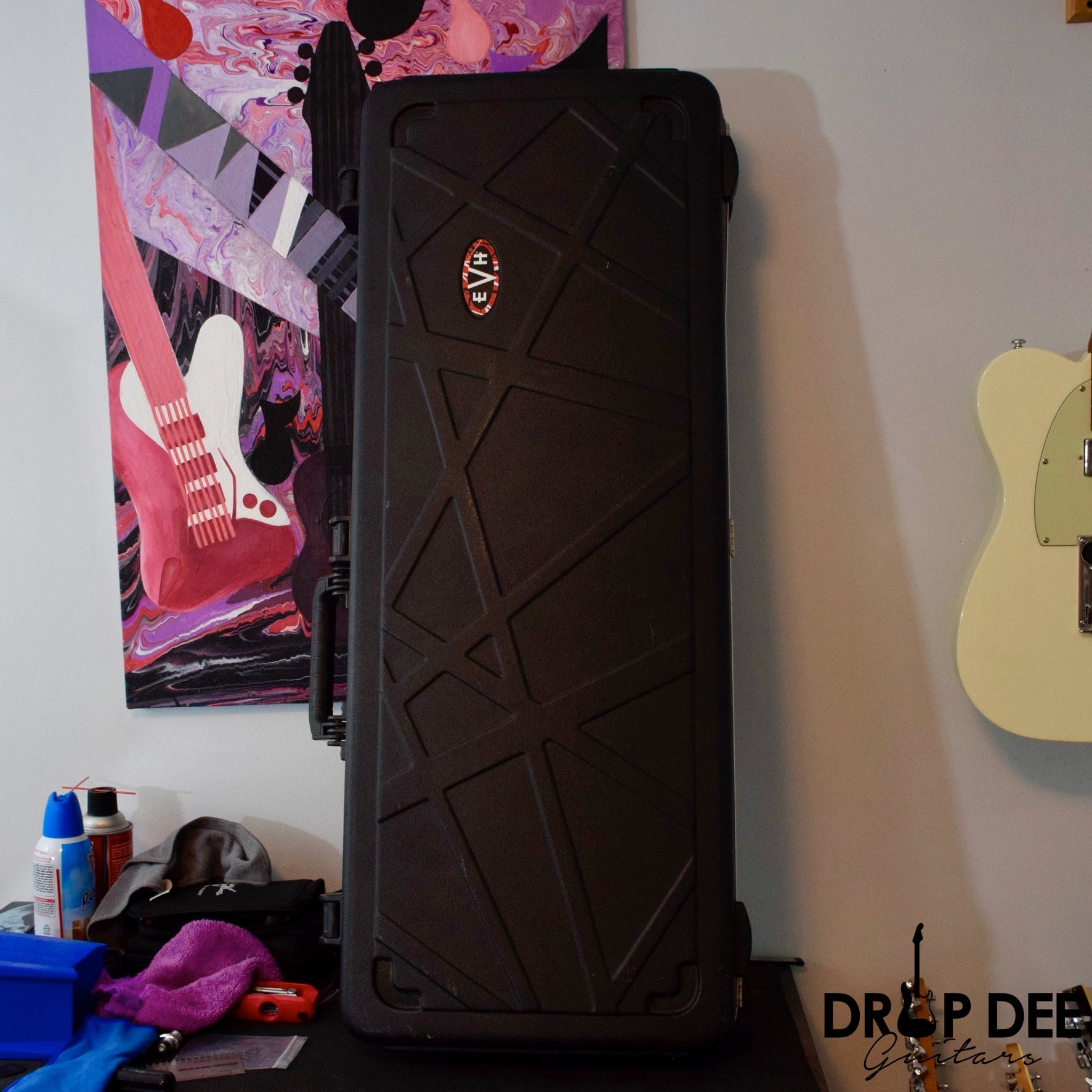

• Case: EVH® Wolfgang® Hardshell
• Included Accessories: EVH Leather strap, Dog leash strap/eye-bolt brass clasps, tremolo arm, hex keys & user manual
