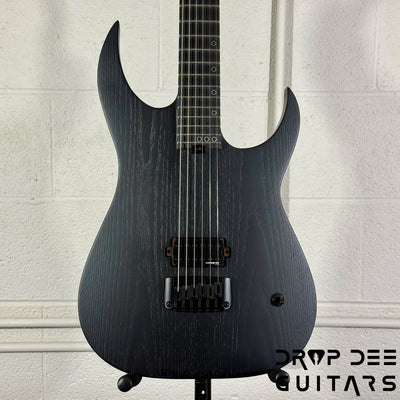

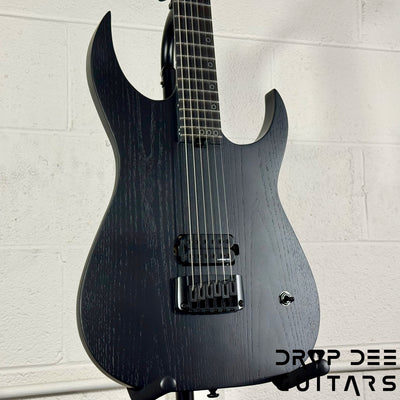

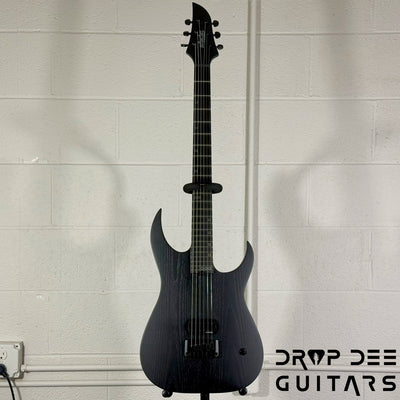

Schecter Diamond Series Keith Merrow KM-6 MK-III EX Baritone Electric Guitar - Satin Black Open Pore

The Schecter Diamond Series Keith Merrow KM-6 MK-III EX Baritone in Satin Black Open Pore is a purpose-built, modern metal instrument designed for crushing low tunings, surgical precision, and uncompromising performance. Developed in collaboration with Keith Merrow, this extended-scale powerhouse strips the signal path down to its essentials, delivering maximum clarity, aggression, and control for high-gain players who demand absolute focus.

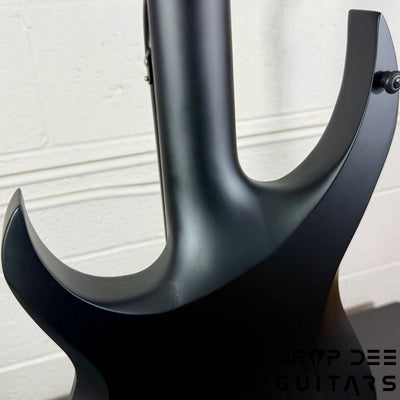

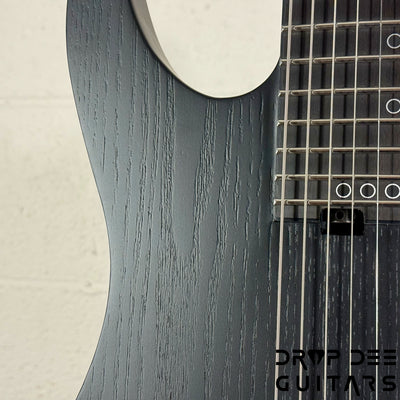

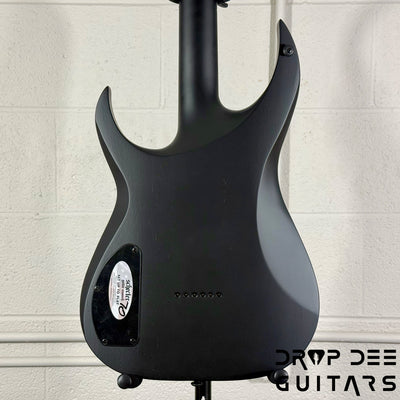

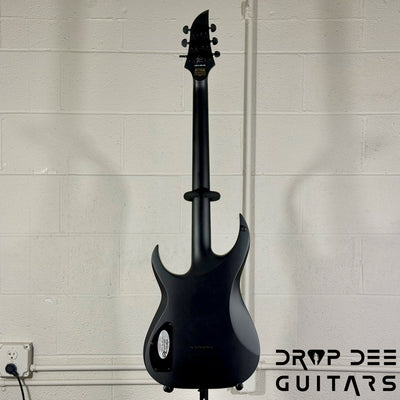

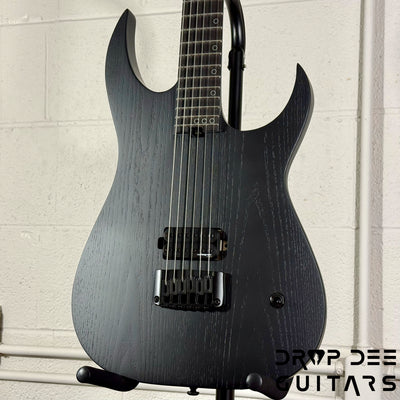

At its core is a resonant mahogany body capped with an ash top, finished in a stealthy open-pore satin that lets the natural grain breathe while enhancing resonance. The neck-thru construction with Ultra Access ensures exceptional sustain and effortless access to all 24 frets, while the 28” baritone scale length provides tight string tension and authoritative low-end response—perfect for modern drop tunings and extended-range riffing.

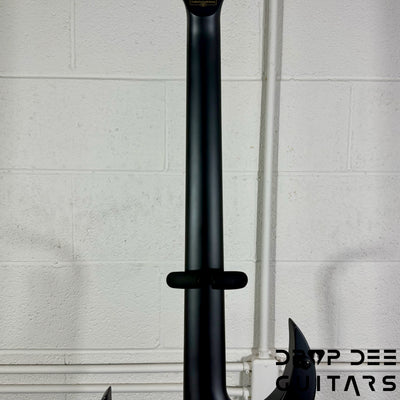

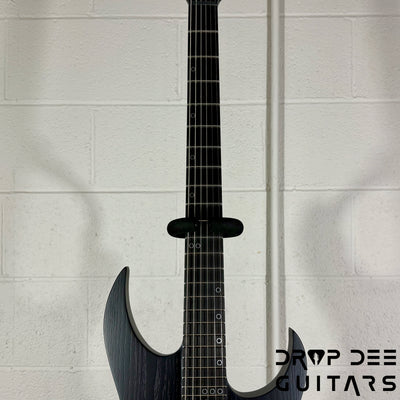

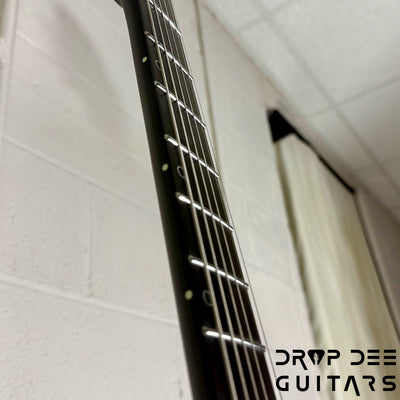

The 3-piece hard maple neck, reinforced with dual carbon fiber rods, is carved into a fast and comfortable Thin “C” profile, measuring just 20mm at the 1st fret and 21mm at the 12th. An ebony fingerboard with a 12”–16” compound radius and 24 X-Jumbo stainless steel frets delivers a smooth, durable playing surface built for speed, precision, and longevity. Visual details like aluminum offset/reverse circle inlays and Luminlay side dots add both style and practical visibility on dark stages.

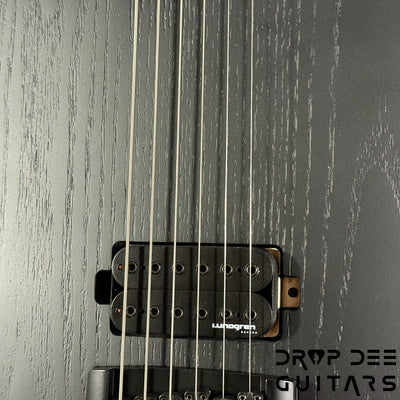

Electronics are intentionally minimal and brutally effective. A single Lundgren Black Heaven bridge humbucker provides articulate, aggressive output with exceptional note separation, making complex chords and fast passages stay clear even under extreme gain. Control is handled via a single killswitch, allowing for instant stutter effects and total signal control without distraction.

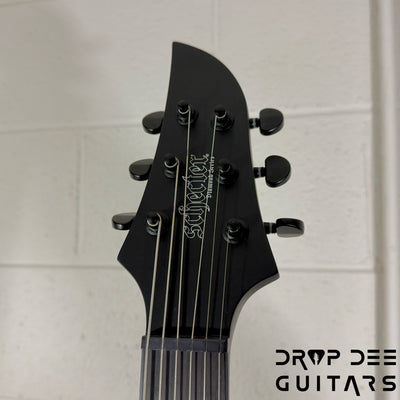

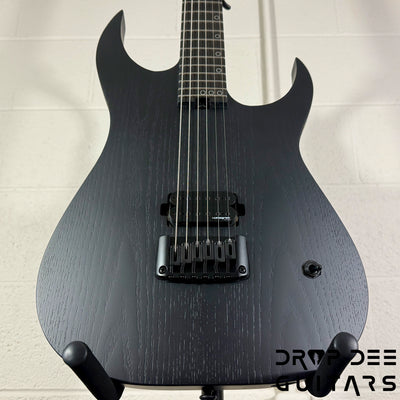

Rock-solid hardware completes the build, including a Hipshot hardtail bridge, Schecter locking tuners, and a Graph Tech XL Black Tusq nut, ensuring outstanding tuning stability and sustain even under the heaviest playing conditions. Factory-strung with Ernie Ball Baritone Not Even Slinky (.012–.056) strings, the KM-6 MK-III EX is ready to deliver devastating tone straight out of the case.

Condition: This is a brand new Schecter Diamond Series Keith Merrow KM-6 MK-III EX Baritone in Satin Black Open Pore. It includes Schecter’s full manufacturer warranty and arrives fully dialed-in with our Pro-Tech Setup, so it’s ready to perform right out of the box. Drop Dee Guitars is an authorized Schecter dealer.

Pro-Tech Setup: Every guitar we sell receives our Pro-Tech setup, including:

• Neck adjustment for proper relief
• Action setup for buzz-free playability
• Intonation across all frets
• Hardware inspection and tuning stability check
• Full electronics check and play-test

Your KM-6 MK-III EX will arrive performance-ready with tight feel, massive tone, and precision setup.

Specs

• Guitar Color: Satin Black Open Pore
• Body Material: Mahogany
• Top Material: Ash
• Construction: Neck-Thru with Ultra Access
• Top Contour: Radius Top
• Neck Material: 3-Piece Hard Maple with 2 Carbon Fiber Reinforcement Rods
• Neck Shape: Thin “C”
• Neck Thickness: 20mm (1st fret) / 21mm (12th fret)
• Scale Length: 28”
• Fingerboard Material: Ebony
• Fingerboard Radius: 12”–16” Compound
• Inlays: Aluminum Offset / Reverse Circles
• Side Dots: Luminlay
• Frets: 24 X-Jumbo Stainless Steel
• Nut: Graph Tech XL Black Tusq
• Nut Width: 42mm
• Truss Rod: 2-Way Adjustable with Spoke Wheel at Neck Heel

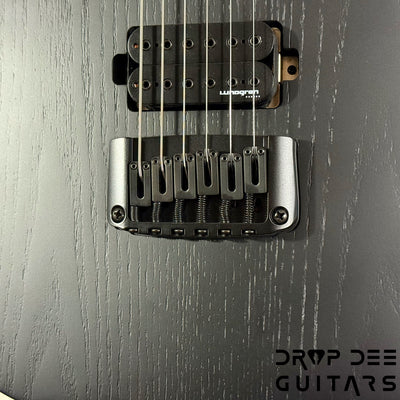

• Bridge: Hipshot Hardtail

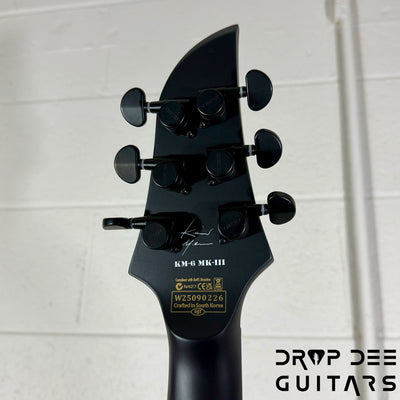

• Tuners: Schecter Locking
• Hardware Color: Satin Black
• Bridge Pickup: Lundgren Black Heaven
• Controls: Single Killswitch (On/Off)
• Strings: Ernie Ball Baritone Not Even Slinky #2626 (.012–.056)
